Item #: EC6J41
Price: $47,060.00
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

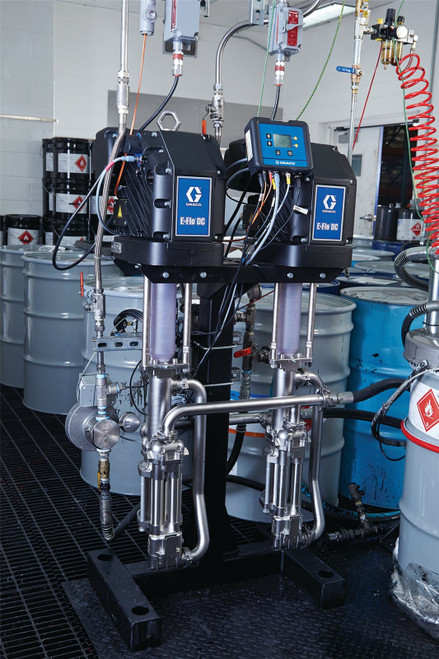

GRACO EC6J41 - E-Flo DC 4-Ball Electric Circulation Pump, 4000cc, 2 x 2 HP, 480V, Advanced, ATEX/FM/IECEx, Sealed Lower, Ultralife Rod/Cylinder, Tri-Clamp, Stand
Genuine GRACO replacement e-flo dc 4-ball electric circulation pump, 4000cc, 2 x 2 hp, 480v, advanced, ate.
E-Flo DC (Dual Control) electric pumps are up to five times more efficient than pneumatic pumps, lowering energy bills and saving money. Unique 4-ball lower minimizes pulsation while increasing flow rates. Advanced control module improves performance with Intelligent Paint Kitchen (IPK) compatibility.
Specifications
| Fluid Inlet Size (in) | 1.5 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | Tri-Clamp |
| Fluid Inlet Type | Tri-Clamp |
| Fluid Outlet Size (in) | 1.5 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | Tri-Clamp |
| Fluid Section Type | 4-Ball, Sealed Bellows |
| Includes | Advanced Control Input, Stand |
| Maximum Continuous Cycle Rate (CPM) | 20 |
| Maximum Operating Temperature (°F) | 104 |
| Maximum Voltage (V ac) | 480 |
| Maximum Working Pressure (MPa) | 1.9 |
| Maximum Working Pressure (psi) | 276 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Voltage (V ac) | 380 |
| Overall Depth (in) | 18.39 |
| Overall Height (in) | 59.69 |
| Overall Width (in) | 28.5 |
| Type | Electric Piston Pump |
| Weight (lb) | 441 |
| Wetted Material | Stainless Steel, PTFE, Leather, Tungsten Carbide, Fluoropolymer, UHMWPE |
GRACO EC6J41 - E-Flo DC 4-Ball Electric Circulation Pump, 4000cc, 2 x 2 HP, 480V, Advanced, ATEX/FM/IECEx, Sealed Lower, Ultralife Rod/Cylinder, Tri-Clamp, Stand
Genuine GRACO replacement e-flo dc 4-ball electric circulation pump, 4000cc, 2 x 2 hp, 480v, advanced, ate.
E-Flo DC (Dual Control) electric pumps are up to five times more efficient than pneumatic pumps, lowering energy bills and saving money. Unique 4-ball lower minimizes pulsation while increasing flow rates. Advanced control module improves performance with Intelligent Paint Kitchen (IPK) compatibility.
Specifications
| Fluid Inlet Size (in) | 1.5 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | Tri-Clamp |
| Fluid Inlet Type | Tri-Clamp |
| Fluid Outlet Size (in) | 1.5 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | Tri-Clamp |
| Fluid Section Type | 4-Ball, Sealed Bellows |
| Includes | Advanced Control Input, Stand |
| Maximum Continuous Cycle Rate (CPM) | 20 |
| Maximum Operating Temperature (°F) | 104 |
| Maximum Voltage (V ac) | 480 |
| Maximum Working Pressure (MPa) | 1.9 |
| Maximum Working Pressure (psi) | 276 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Voltage (V ac) | 380 |
| Overall Depth (in) | 18.39 |
| Overall Height (in) | 59.69 |
| Overall Width (in) | 28.5 |
| Type | Electric Piston Pump |
| Weight (lb) | 441 |
| Wetted Material | Stainless Steel, PTFE, Leather, Tungsten Carbide, Fluoropolymer, UHMWPE |
