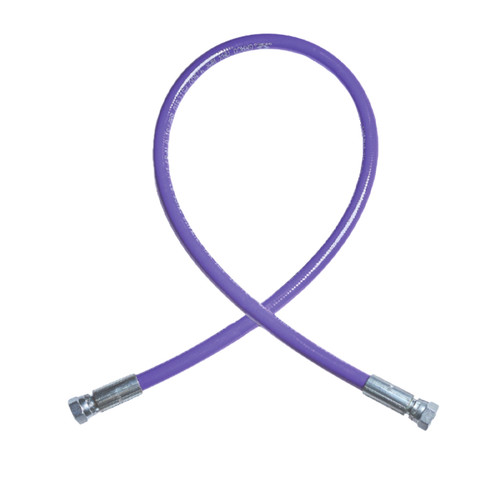

GRACO H42503 - Xtreme-Duty 4500 PSI High Pressure Hose 1/4" x 3 ft

GRACO H42503 Xtreme-Duty Airless Hose designed for high-pressure professional spraying applications. Wire-braided construction provides maximum durability and safety at working pressures up to 4500 PSI. Features MxF whip hose connections for secure attachment to spray equipment.

Xtreme-Duty Airless High-Pressure Hose is designed to withstand the rigors of high-pressure spraying. Its durable design meets exacting standards – ultimately reducing downtime due to hose failure.

Additional Specifications

• Inside Diameter: 1/4 in (6.4 mm)
• Length: 3 ft (0.9 m)
• Max Working Pressure: 4500 PSI (310 bar)
• Material: Aluminum, stainless steel, polyethylene, polyurethane, polypropylene, nylon, acetal, carbide, solvent-resistant O-Rings
• Hose Diameter: 1/4 in (6.4 mm)
• Construction: Wire-braided
• Temperature Rating: 82°F (100°F)

Specifications

Features

• Lightweight and ergonomic design
• Genuine GRACO quality construction
• High pressure rating up to 4500 PSI
• Solvent-resistant O-Rings
• Multi-material construction for durability
• High 4500 PSI pressure rating

Applications

• High pressure spray applications
• Professional coating operations
• Industrial spraying
• High-pressure spray applications
• Professional painting
• Industrial coating

Compatible Equipment

• XTR-5 spray guns (5000 PSI rated)
• XTR-7 spray guns (7250 PSI rated)
• Ram pump equipment
• High-pressure spray systems
• Professional spray guns

Related Parts

• H42506 - Xtreme-Duty 4500 PSI High Pressure Hose 1/4" x 6 ft
• H42510 - Xtreme-Duty 4500 PSI High Pressure Hose 1/4" x 10 ft
• H42525 - Xtreme-Duty 4500 PSI High Pressure Hose 1/4" x 25 ft
• H42550 - Xtreme-Duty 4500 PSI High Pressure Hose 1/4" x 50 ft
• H4251X - Xtreme-Duty 4500 PSI High Pressure Hose 1/4" x 100 ft
• H43810 - Xtreme-Duty 4500 PSI High Pressure Hose 3/8" x 10 ft
• H43825 - Xtreme-Duty 4500 PSI High Pressure Hose 3/8" x 25 ft
• H43850 - Xtreme-Duty 4500 PSI High Pressure Hose 3/8" x 50 ft

Part of the Xtreme-Duty hose family with various lengths and pressure ratings available. Compatible with airless spray guns in the XTR series. Part of GRACO's high-pressure nylon hose family with 1/4F coupling for ram pump accessories Part of the Xtreme-Duty Airless Hose family with wire-braided construction for heavy-duty applications

Reference Manuals

• 336053 (Page 2) Graco XTR Airless Spray Guns Flyer (English)
• 336833 (Page 135) Single Component Catalog - Buyer's Guide and Specifications
• 343214 (Page 11) Airless Accessories
• 344386 (Page 7) Airless Accessories Brochure
• 308690 (Page 19) art-Mounted Air Assisted Packages
