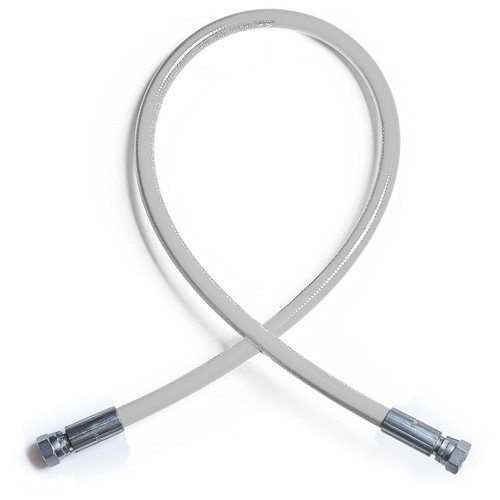

GRACO H53803 - Xtreme-Duty 5600 PSI High Pressure Hose 3/8" x 3 ft

Genuine Graco Fluid Hoses Make the Difference.

For use with Graco XTR-5 and XTR-7 Airless Spray Guns

Specifications

• Inside Diameter: 3/8 in (9.5 mm)
• Length: 3 ft (0.9 m)
• Thread: 3/8 in
• Max Working Pressure: 5600 PSI (386 bar)
• Material: Aluminum, stainless steel, polyethylene, polyurethane, polypropylene, nylon, acetal, carbide, solvent-resistant O-Rings
• Hose Diameter: 3/8 in (9.5 mm)
• Female Npsm: 3/8 in
• Coupling: cpld (coupled)

Features

• Lightweight and ergonomic design
• Exceptional life, pattern and finish
• Factory set needle needs no adjustments
• Easy Out gun filter reduces tip plugs and eliminates collapsed filters
• Variety of handle and trigger options
• EasyGlide swivel allows easier gun movement under high pressure

Applications

• High pressure spray applications
• Professional coating operations
• Industrial painting
• Heavy-duty fluid transfer
• Ram pump operations
• High-pressure fluid transfer

Compatible Equipment

• XTR-5 Airless Spray Gun (5000 PSI)
• XTR-7 Airless Spray Gun (7250 PSI)
• XHD RAC tip systems
• Ram pump systems
• High-pressure sealants and adhesives equipment
• Manifold Kit 288729 - Kit Accessory

Related Parts

• H53806 - Xtreme-Duty 5600 PSI High Pressure Hose 3/8" x 6 ft
• H53810 - Xtreme-Duty 5600 PSI High Pressure Hose 3/8" x 10 ft
• H53825 - Xtreme-Duty 5600 PSI High Pressure Hose 3/8" x 25 ft
• H53850 - Xtreme-Duty 5600 PSI High Pressure Hose 3/8" x 50 ft
• H53831X (100 ft version)
• H75010 - Xtreme-Duty 7250 PSI High Pressure Hose 1/2" x 10 ft
• H75025 - Xtreme-Duty 7250 PSI High Pressure Hose 1/2" x 25 ft
• H75050 - Xtreme-Duty 7250 PSI High Pressure Hose 1/2" x 50 ft

Part of the Xtreme-Duty 5600 PSI high pressure hose family. Maximum working pressure varies by gun model - XTR-5: 5000 PSI, XTR-7: 7250 PSI. Sound power level tested to ISO 3841-2 at 95.75dB(A). Part of GRACO's comprehensive ram pump accessories line with multiple length and pressure options available This hose is part of Manifold Kit 288729 with quantity 1. The kit has a maximum working pressure of 5000 PSI (34 MPa, 345 bar).

Reference Manuals

• 336053 (Page 2) Graco XTR Airless Spray Guns Flyer (English)
• 336833 (Page 136) Single Component Catalog - Buyer's Guide and Specifications
• 312047 (Page 1) Manifold Kit 288729
• 3B0224 (Page 52) E-Mix XT, Repair and Parts
