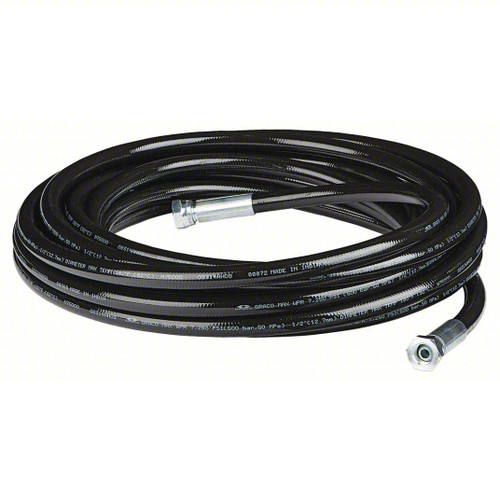

GRACO H75010 - Xtreme-Duty 7250 PSI High Pressure Hose 1/2" x 10 ft, 1/2 in NPSM

Genuine Graco Fluid Hoses Make the Difference.

For use with Graco XTR-5 and XTR-7 Airless Spray Guns

Specifications

• Inside Diameter: 1/2 in (12.7 mm)
• Length: 10 ft (3.0 m)
• Thread: 1/2 in NPSM
• Max Working Pressure: 7250 PSI (500 bar, 50.0 MPa)
• Material: Aluminum, stainless steel, polyethylene, polyurethane, polypropylene, nylon, acetal, carbide, solvent-resistant O-Rings
• Fluid Orifice: 0.009 in (2.3 mm)
• Fluid Inlet: 1/4 npsm
• Max Fluid Temp: 160°F (71° C)
• Sound Pressure: 84.3dB(A)
• Sound Power: 95.7dB(A)
• Coupling: 1/2F
• Coupled: yes

Features

• Lightweight and ergonomic design
• Exceptional life, pattern and finish
• Factory set needle needs no adjustments
• Genuine GRACO quality construction
• High pressure capability up to 7250 PSI
• High pressure rating of 7250 PSI

Applications

• High pressure coating applications
• Professional spray finishing
• Industrial coating operations
• Ram pump operations
• High-pressure sealant and adhesive dispensing
• Industrial pumping applications

Compatible Equipment

• XTR-7 Airless Spray Gun (7250 PSI maximum working pressure)
• XTR700 series spray guns
• Other GRACO airless spray equipment rated for 7250 PSI
• Ram pumps
• High-pressure dispensing equipment

Related Parts

• H75025 - Xtreme-Duty 7250 PSI High Pressure Hose 1/2" x 25 ft
• H75050 - Xtreme-Duty 7250 PSI High Pressure Hose 1/2" x 50 ft
• H7501X - Xtreme-Duty 7250 PSI High Pressure Hose 1/2" x 100 ft
• H73803 - Xtreme-Duty 7250 PSI High Pressure Hose 3/8" x 3 ft
• H73806 - Xtreme-Duty 7250 PSI High Pressure Hose 3/8" x 6 ft
• H73810 - Xtreme-Duty 7250 PSI High Pressure Hose 3/8" x 10 ft
• H73825 - Xtreme-Duty 7250 PSI High Pressure Hose 3/8" x 25 ft
• H73850 - Xtreme-Duty 7250 PSI High Pressure Hose 3/8" x 50 ft
• H7381X - Xtreme-Duty 7250 PSI High Pressure Hose 3/8" x 100 ft
• H75002 - Xtreme-Duty 7250 PSI High Pressure Hose 1/2" x 2 ft

Part of the Xtreme-Duty 7250 PSI high pressure hose family. Features wetted parts made of aluminum, stainless steel, polyethylene, polyurethane, polypropylene, nylon, acetal, carbide, and solvent-resistant O-Rings. Part of GRACO's ram pump accessories hose family with various length and pressure options available This is a coupled hose assembly. Related parts H75002 and H73803 are also coupled hoses with different specifications - H75002 is 0.5 in ID x 2 ft, and H73803 is 0.375 ID x 3 ft.

Reference Manuals

• 336053 (Page 2) Graco XTR Airless Spray Guns Flyer (English)
• 336833 (Page 136) Single Component Catalog - Buyer's Guide and Specifications
• 3A2989 (Page 57) XM PFP Plural-Component Sprayer, Repair and parts instructions
• 3A8047 (Page 43) XM PFP 55 Gallon (208 Liter) Feed System
