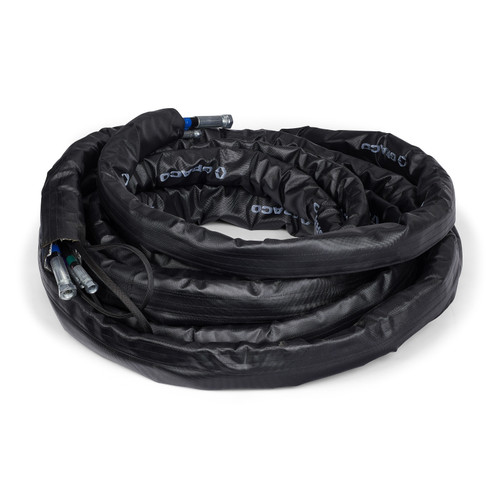

GRACO HH73215 - Electric Heated Hose, 7250 PSI, 3/8" x 1/4 x 50 ft, With Solvent Line

Hose temperature control and recirculation accessory kits for Graco XM and XP sprayers available

Specifications

• Outside Diameter: 3/8 in
• Inside Diameter: 3/8 in
• Length: 50 ft (15.2 m)
• Max Working Pressure: 7250 PSI (500 bar, 50.0 MPa)
• Material: with solvent line
• Electrical Rating: Class I Div I
• Return Line: no return line
• Solvent Line: with solvent line
• Return Lines: no return lines
• Explosion Rating: Class 1 Div 1
• Hose Type: Heated Hose Bundle
• A Fluid Hose: Not included (--- in table)
• B Fluid Hose: H72550
• A Recirculation: Not included (--- in table)
• B Recirculation: Not included (--- in table)
• Solvent Hose: Not included
• Scuff Guard: 18B790
• Heat Trace: Not included

Features

• Approved for explosive atmospheres Class I Div I
• Electric heating for continuous temperature control
• Solvent line included for cleaning operations
• No return line design for simplified installation
• High pressure rating up to 7250 PSI
• Electric heating for consistent temperature control

Applications

• Explosive atmosphere environments
• XP and XM system applications
• High pressure spray applications
• Industrial coating operations
• High-pressure spray applications
• Cold weather spraying operations

Compatible Equipment

• XP Systems
• XM Systems

Related Parts

• HH73205
• HH73225 - Electric Heated Hose, 7250 PSI, 3/8" x 1/4 x 50 ft, Recirculation Hose
• HH73235
• HH73245
• HH73255
• HH73265
• HH7321X - Electric Heated Hose, 1/4" x 100 ft, 7250 PSI
• HH7331X - Electric Heated Hose, 3/8" x 100 ft, 7250 PSI
• HH7350X
• HH7525X

Kit Contents

• H72550 - B Fluid Hose
• 18B790 - Scuff Guard

Part of a continuous length heated hose family with various configurations for different ID sizes and return line options Part of the FOR USE WITH XP OR XM SYSTEMS heated hose family, specifically designed for explosive atmospheres with Class 1 Div 1 rating Part of 50 ft hose bundle series. Based on part numbering system: HH = Heated Hose, 7 = 7250 PSI, 5 = 1/2 in. A hose diameter, 2 = 1/4 in. B hose diameter, 1 = no options, 5 = 50 ft length

Reference Manuals

• 3J0679EN (Page 13) ENEU
• 3J0679ENEU (Page 13)
• 3A7524 (Page 37) Xtreme-Wrap Electric Heated Hose
