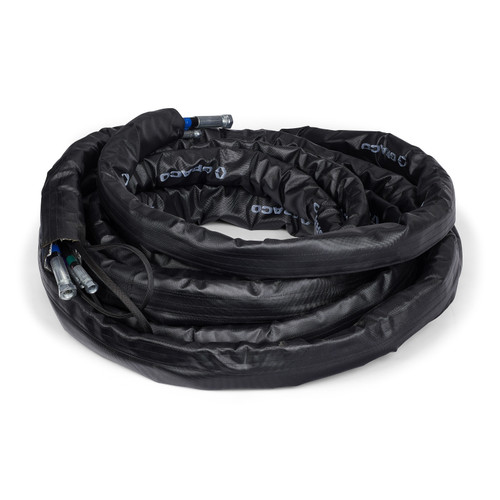

GRACO HH75225 - Electric Heated Hose, 7250 PSI, 1/2" x 1/4 x 50 ft, Recirculation Hose

Electric heated hose designed for explosive atmospheres Class 1 Div 1, featuring 1/2 in (A) x 3/8 in (B) configuration with solvent line and no return lines. Built for high-pressure applications up to 7250 PSI with 2 x 3/8 in return line capability.

Specifications

• Outside Diameter: 1/2 inch
• Inside Diameter: 1/4 inch
• Length: 50 ft
• Max Working Pressure: 7250 PSI (500 bar, 50.0 MPa)
• Material: Electric heated construction
• Classification: Class I Div I explosive atmosphere approval
• Application Type: Recirculation hose
• Explosive Atmosphere Rating: Class 1 Div 1
• Solvent Line: included
• Return Lines: no return lines
• Hose Type: Heated Hose
• Bundle Type: 50 ft (15.2 m) Hose Bundle
• Fluid Hoses: H72550 (A Fluid), none (B Fluid)
• Recirculation Hoses: H73850 (A Recirculation), H73850 (B Recirculation)
• Solvent Hose: H42550
• Scuff Guard: 18B796
• Heat Trace: 19D243

Features

• Electric heated construction for temperature control
• Class I Div I explosive atmosphere approval for hazardous locations
• High pressure rating up to 7250 PSI
• Specialized for recirculation applications
• Maintains material temperature during transfer
• Electric heated design for temperature control

Applications

• Explosive atmosphere environments (Class I Div I)
• Material recirculation systems
• Temperature-sensitive coating applications
• Hazardous location spray applications
• Explosive atmosphere environments
• High-pressure fluid transfer

Compatible Equipment

• XP or XM systems
• XP systems
• XM systems

Related Parts

• HH55505
• HH555X
• HH5535
• HH553X
• HH7521S
• HH7522S
• HH7523S
• HH7524S
• HH7525S
• HH7526S

Kit Contents

• H72550 - A Fluid hose
• H73850 - A Recirculation hose
• H73850 - B Recirculation hose
• H42550 - Solvent hose
• 18B796 - Scuff Guard
• 19D243 - Heat Trace

Part of GRACO's heated hose family designed for use with XP or XM systems. Specifically engineered for recirculation applications in explosive atmospheres. Part of the heated hose family designed for use with XP or XM systems. Cannot be linked together with other heated hoses. Part of 50 ft hose bundle series with heat trace capability. Based on part number format: HH=Heated Hose, 7=7250 PSI, 5=1/2 inch A hose diameter, 2=1/4 inch B hose diameter, 2=recirculation hoses added, 5=50ft length

Reference Manuals

• 3J0679EN (Page 13)
• 3J0679ENEU (Page 13)
• 3A7524 (Page 37)
