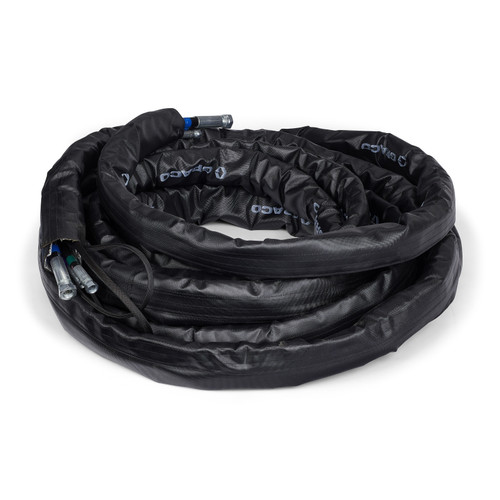

GRACO HH75315 - Electric Heated Hose, 7250 PSI, 1/2" x 3/8 x 50 ft

Hose temperature control and recirculation accessory kits for Graco XM and XP sprayers available

Specifications

• Outside Diameter: 3/8 inch
• Inside Diameter: 3/8 in
• Length: 50 ft
• Max Working Pressure: 7250 PSI (500 bar, 50.0 MPa)
• Material: heated hose with solvent line
• Classification: Class 1 Div 1
• Solvent Line: 3/8 in
• Return Line: no return lines
• Configuration: 3/8 in (A), 3/8 in (B) with solvent line
• Approval: approved for explosive atmospheres
• Hose Type: heated hose
• A Fluid Hose: H73850
• B Fluid Hose: H73850
• A Recirculation: ---
• B Recirculation: ---
• Solvent: ---
• Scuff Guard: 18B790
• Heat Trace: ---

Features

• Electric heated for consistent temperature control
• Approved for explosive atmospheres Class 1 Div 1
• High pressure rating up to 7250 PSI
• Solvent line with no return line configuration
• 50 foot length for extended reach
• Electric heated design for consistent material temperature

Applications

• Explosive atmosphere environments
• High pressure spray applications
• Industrial coating operations
• Solvent-based material spraying
• Explosive atmosphere spray applications
• High-pressure material transfer

Compatible Equipment

• XP Systems
• XM Systems
• E-MIX XT systems

Related Parts

• HH72315
• HH73315
• HH74315
• HH76315
• HH77315
• HH75265
• HH75335
• HH7531S
• HH7532S
• HH7533S

Kit Contents

• H73850 - A Fluid hose
• H73850 - B Fluid hose
• 18B790 - Scuff Guard

Part of the electric heated hose family with various ID and length configurations available for different XP/XM system requirements Part of the electric heated hose family with various length and configuration options available Part of 50 ft hose bundle series. Based on part numbering system: HH=Heated Hose, 7=7250 PSI, 5=1/2 in A hose diameter, 3=3/8 in B hose diameter, 1=no options, 5=50 ft length

Reference Manuals

• 3J0679EN (Page 13) ENEU
• 3J0679ENEU (Page 13)
• 3A7524 (Page 37) Xtreme-Wrap Electric Heated Hose
