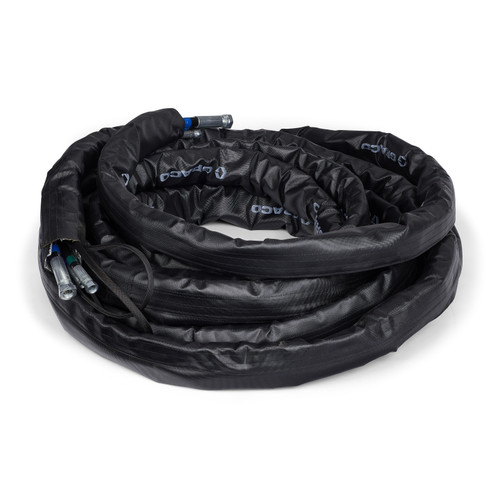

GRACO HH75325 - Electric Heated Hose, 7250 PSI, 1/2" x 3/8 x 50 ft, Recirculation Hose

Electric heated hose designed for explosive atmospheres Class 1 Div 1, featuring 1/2 inch ID with 3/8 inch solvent line for recirculation applications. Built to withstand 7250 PSI working pressure with no return lines required, making it ideal for high-pressure spray applications in hazardous environments.

Specifications

• Inside Diameter: 1/2 in (A)
• Length: 50 ft
• Max Working Pressure: 7250 PSI
• Solvent Line: 3/8 in (B)
• Return Lines: no return lines
• Hazardous Rating: Class 1 Div 1 explosive atmospheres
• Hose Type: Heated Hose
• A Fluid Hose: H73850
• B Fluid Hose: H73850
• A Recirculation: H73850
• B Recirculation: H73850
• Scuff Guard: 18B796

Features

• Electric heated design for temperature control
• Approved for explosive atmospheres Class 1 Div 1
• No return lines required
• High pressure rating of 7250 PSI
• Dual line configuration with solvent line
• 50 foot length for extended reach

Applications

• High-pressure spray applications
• Hazardous environment spraying
• Solvent-based coating applications
• Industrial painting in explosive atmospheres

Compatible Equipment

• XP systems
• XM systems

Related Parts

• HH7531S
• HH7532S
• HH7533S
• HH7534S
• HH7535S
• HH7536S
• HH73215
• HH73225
• HH73315
• HH75215

Kit Contents

• H73850 - A Fluid Hose
• H73850 - B Fluid Hose
• H73850 - A Recirculation Hose
• H73850 - B Recirculation Hose
• 18B796 - Scuff Guard

Part of the electric heated hose family for use with XP or XM systems, specifically designed for hazardous locations requiring explosion-proof equipment. Part of 50 ft heated hose bundle series with dual fluid lines and recirculation capability

Reference Manuals

• 3J0679EN (Page 13) ENEU
• 3J0679ENEU (Page 13)
• 3A7524 (Page 37) Xtreme-Wrap Electric Heated Hose
