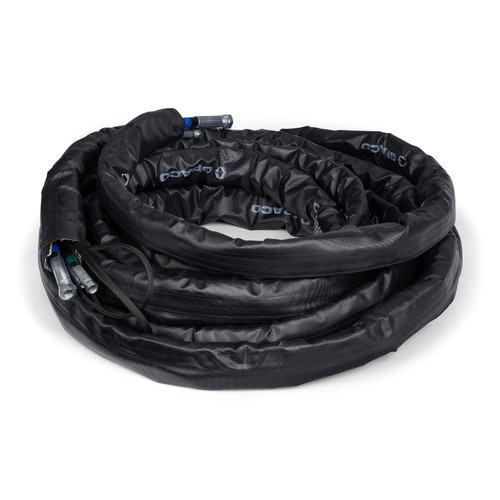

GRACO HH75335 - Electric Heated Hose, 7250 PSI, 1/2" x 3/8" x 1/4 x 50 ft, Solvent Line

Electric heated hose designed for explosive atmospheres Class 1 Div 1, engineered to maintain fluid temperature in demanding spray applications while providing reliable performance in hazardous environments.

Specifications

• Outside Diameter: 3/8 in
• Inside Diameter: 1/4 in
• Length: 50 ft
• Max Working Pressure: 7250 PSI
• Material: solvent line with no return lines
• Approval: Class 1 Div 1
• Hose Type: heated hose
• Return Lines: no return lines
• Bundle Length: 50 ft (15.2 m)

Features

• Electric heated for consistent fluid temperature
• Approved for explosive atmospheres Class 1 Div 1
• Solvent line configuration
• No return lines design
• High pressure rating of 7250 PSI

Applications

• Explosive atmosphere applications
• Solvent spraying operations
• High pressure fluid transfer where heating is required

Compatible Equipment

• XP systems
• XM systems

Related Parts

• HH7531S
• HH7532S
• HH7533S
• HH7534S
• HH7521X - Electric Heated Hose, 7250 PSI, 1/2 x 1/4 in, 100 ft
• HH7522X - Electric Heated Hose, 7250 PSI, 1/2" x 1/4 x 100 ft Recirculation Hose
• HH7523X
• HH7524X
• HH73215 - Electric Heated Hose, 7250 PSI, 3/8" x 1/4 x 50 ft, With Solvent Line
• HH73225 - Electric Heated Hose, 7250 PSI, 3/8" x 1/4 x 50 ft, Recirculation Hose

Kit Contents

• H75050 - 'A' Fluid hose
• H73850 - 'B' Fluid hose
• H72550 - 'B' Fluid hose
• 18B790 - Scuff Guard

Part of the heated hose family for use with XP or XM systems, specifically designed for hazardous locations requiring Class 1 Div 1 approval. This is a hose bundle containing multiple fluid hoses and a scuff guard. Part of the 50 ft hose bundle series.

Reference Manuals

• 3J0679EN (Page 13) ENEU
• 3J0679ENEU (Page 13)
• 3A7524 (Page 37) Xtreme-Wrap Electric Heated Hose
