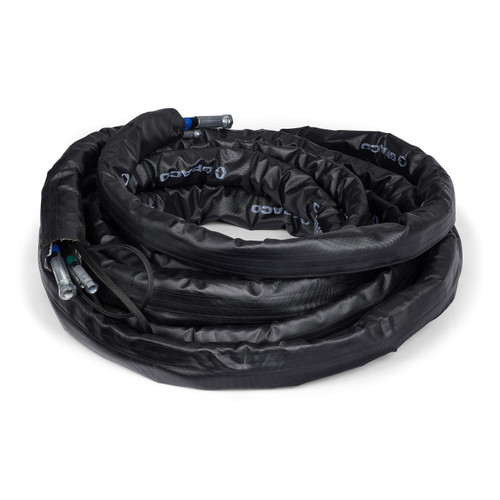

GRACO HH75345 - Electric Heated Hose, 7250 PSI, 1/2" x 3/8" x 1/4 x 50 ft, Recirculation Hose

Electric heated hose designed for explosive atmospheres Class I Div I applications, engineered for use with XP or XM spray systems. Features swivel line connection and return line capability for enhanced operational flexibility in demanding industrial coating environments.

Specifications

• Inside Diameter: 1/2 in (A)
• Length: 50 ft (15.2 m)
• Thread: 3/8 in (B) with swivel line, 1/4 in (C) with swivel line
• Max Working Pressure: 7250 PSI (500 bar, 50.0 MPa)
• Classification: Class I Div I
• Return Lines: 2 x 3/8 in return lines
• Swivel Connection: Yes
• Hose Type: heated hose bundle
• A Fluid Hose: H75050
• B Fluid Hose: H73850
• A Recirculation Hose: H73850
• B Recirculation Hose: H73850
• Scuff Guard: 18B796

Features

• Approved for explosive atmospheres Class I Div I
• Electric heating for consistent material temperature
• Swivel line connections for operational flexibility
• Dual return line configuration
• High pressure rating up to 7250 PSI
• Compatible with XP and XM systems

Applications

• Explosive atmosphere environments
• Industrial spray coating
• XP and XM system applications
• High-pressure material handling

Compatible Equipment

• XP Systems
• XM Systems

Related Parts

• HH72315
• HH73315
• HH74315
• HH75315
• HH76315
• HH72525
• HH73525
• HH74525
• HH76525
• HH73215

Kit Contents

• H75050 - 'A' Fluid hose
• H73850 - 'B' Fluid hose
• H73850 - 'A' Recirculation hose
• H73850 - 'B' Recirculation hose
• 18B796 - Scuff Guard

Part of GRACO's electric heated hose family for use with XP or XM systems, specifically designed for hazardous location applications Part of 50 ft hose bundle series. Based on part numbering system: HH=Heated Hose, 7=7250 PSI, 5=1/2 in. 'A' hose diameter, 3=3/8 in. 'B' hose diameter, 4=Recirculation and second B hoses added, 5=50 ft length

Reference Manuals

• 3J0679EN (Page 13)
• 3J0679ENEU (Page 13)
• 3A7524 (Page 37)
