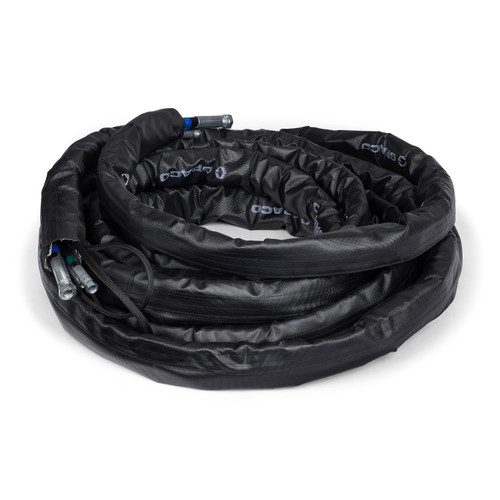

GRACO HH75515 - Electric Heated Hose, 7250 PSI, 1/2" x 1/2 x 50 ft, With Solvent Line

Hose temperature control and recirculation accessory kits for Graco XM and XP sprayers available

Specifications

• Inside Diameter: 1/2 in (A)
• Length: 50 ft (15.2 m)
• Max Working Pressure: 7250 PSI (500 bar, 50.0 MPa)
• Material: with solvent line
• Return Lines: 2 x 3/8 in return lines
• Solvent Line: with solvent line
• Classification: Class I Div I explosive atmosphere approved
• Configuration: no return lines
• Voltage: electric heated
• Hose Type: heated hose
• A Fluid Hose: H75050
• Scuff Guard: 18B790

Features

• Electric heated design for consistent temperature control
• Approved for explosive atmosphere Class I Div I applications
• Solvent line included for enhanced performance
• Dual 3/8 inch return lines for efficient circulation
• High pressure rating up to 7250 PSI
• 50 foot length provides extended reach

Applications

• Explosive atmosphere environments
• XP and XM system applications
• Industrial coating and painting
• High-pressure fluid transfer requiring heating
• Explosive atmosphere spray applications
• XP and XM system installations

Compatible Equipment

• XP Systems
• XM Systems

Related Parts

• HH75510
• HH75525 - Electric Heated Hose, 7250 PSI, 1/2" x 1/2 x 50 ft, Recirculation Hose
• HH75535
• HH75545
• HH7522X - Electric Heated Hose, 7250 PSI, 1/2" x 1/4 x 100 ft Recirculation Hose
• HH7531X - Electric Heated Hose, 3/8" x 100 ft, 7250 PSI
• HH7532X - Electric Heated Hose, 7250 PSI, 1/2" x 3/8 x 100 ft Recirculation Hose
• HH7533X - Electric Heated Hose, 7250 PSI, 1/2" x 3/8" x 1/4 x 100 ft
• HH7534X - Electric Heated Hose, 7250 PSI, 1/2" x 3/8" x 1/4 x 100 ft Recirculation Hose
• HH7535X

Kit Contents

• H75050 - A Fluid hose
• 18B790 - Scuff Guard

Part of the electric heated hose family designed for use with XP or XM systems, offering various length options from 25ft to 100ft Part of the 30m (100 ft) heated hose family with various ID configurations. Electric heated hoses require appropriate controllers and accessories for proper operation. Part of 50 ft hose bundle series. Based on part numbering system: HH=Heated Hose, 75=7250 PSI, 5=1/2 inch A hose diameter, 1=no options, 5=50 ft length. No B fluid, recirculation hoses, solvent hose, or heat trace included in this configuration.

Reference Manuals

• 3J0679EN (Page 13) ENEU
• 3J0679ENEU (Page 13)
• 3A7524 (Page 37) Xtreme-Wrap Electric Heated Hose
