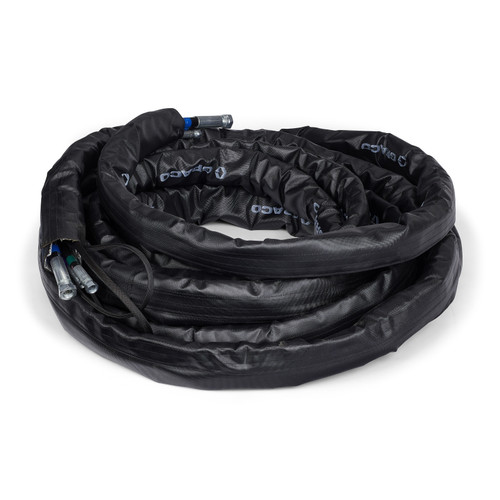

GRACO HH75525 - Electric Heated Hose, 7250 PSI, 1/2" x 1/2 x 50 ft, Recirculation Hose

Electric heated hose designed for explosive atmospheres Class I Div I applications, engineered for use with XP or XM systems. Features 1/2 inch ID with solvent line and return lines for efficient material circulation and temperature control.

Specifications

• Inside Diameter: 1/2 in
• Length: 50 ft (15 m)
• Max Working Pressure: 7250 PSI (500 bar, 50.0 MPa)
• Voltage: 3/8 in (A)
• Solvent Line: 1/4 in (B) with solvent line
• Return Lines: 2 x 3/8 in return lines
• Classification: Class I Div I explosive atmospheres
• Line Type: solvent line, no return lines
• Hose Type: heated hose bundle
• Recirculation: yes
• A Fluid Hose: H75050
• B Recirculation Hoses: H73850

Features

• Approved for explosive atmospheres Class I Div I
• Electric heated design for temperature control
• Dual return line configuration
• High pressure rating up to 7250 PSI
• 50 foot length for extended reach
• Electric heated hose for temperature control

Applications

• Explosive atmosphere environments
• XP and XM system applications
• Material circulation systems requiring temperature control
• Explosive atmosphere environments Class I Div I
• Solvent spraying applications
• High pressure coating systems

Compatible Equipment

• XP Systems
• XM Systems

Related Parts

• HH72515
• HH73015
• HH73515
• HH74015
• HH74515
• HH75025
• HH75325
• HH76025
• HH76535
• HH75345

Kit Contents

• H75050 - A Fluid hose
• H73850 - B Recirculation hoses
• 18B796 - Scuff Guard

Part of the electric heated hose family designed specifically for hazardous location use with XP/XM spray systems Part of the heated hose family for use with XP or XM systems, cannot be linked together with other heated hoses Part of 50 ft hose bundle series with heated capability and recirculation hoses. Based on part numbering system: HH=Heated Hose, 75=7250 PSI, 25=specific configuration, 5=50 ft length.

Reference Manuals

• 3J0679EN (Page 13) ENEU
• 3J0679ENEU (Page 13)
• 3A7524 (Page 37) Xtreme-Wrap Electric Heated Hose
