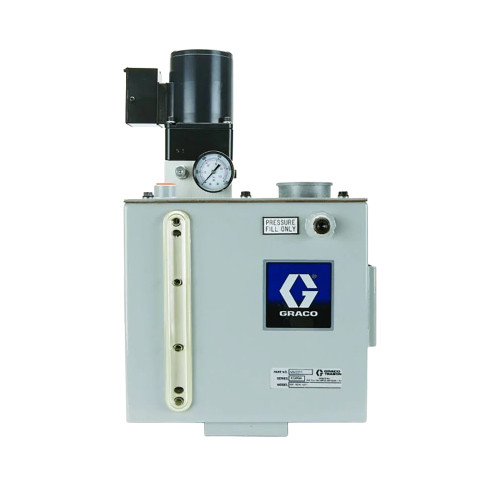

GRACO MM3412 - Miniature Meter-Flo Pump Package, 5 gal Reservoir, 14 cu in/min, 1500 psi, Low Level Switch
GRACO MM3412 is a configured Miniature Meter-Flo electric pump package built on a 5 gal (19 L) steel reservoir, delivering 14 cu in/min (229 cc/min) at up to 1500 psi maximum operating pressure. Each package consists of a 115 VAC, 60 Hz motor direct-coupled to a gear pump and is designed for use with virtually any Series Progressive or Single-Line Resistive oil lubrication system. In continuous duty these assemblies are rated for service up to 1000 psi (69 bar).
Specifications
| Type | Electric Gear Pump Package |
| Ordering Code | MM3412 |
| Reservoir Size | 5 gal (19 L) |
| Output | 14 cu in/min (229 cc/min) |
| Maximum Operating Pressure | 1500 psi |
| Continuous Duty Rating | 1000 psi (69 bar) |
| Voltage | 115 VAC, 60 Hz |
| Motor Power | 1/19 HP (thermally protected) |
| Motor Speed (before reduction) | 1500 rpm |
| Relief Valve | 300–2000 psi (21–138 bar), factory-set @ 1000 psi |
| Suction Strainer | 140 micron stainless steel mesh |
| Pressure Gauge | 0–1500 psi (0–100 bar) |
| Pressure Switch Option | None |
| Low Level Switch Option | Yes — Reed-Type, SPST |
| Housing Material | Painted Steel |
| Compatible Material | Oil (160–15000 SUS) |
| Compatible Metering Device | Series Progressive / Single-Line Resistive |
| Fluid Outlet | 1/4" NPT |
