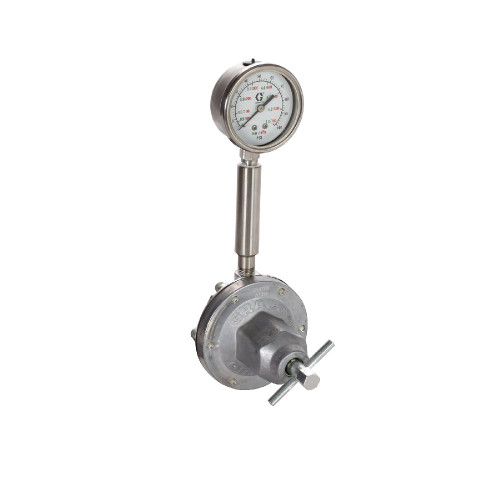

GRACO 209030 Low Pressure Fluid Regulator, 250 Max psi, 5-100 psi Range, 3.0 GPM, SST, Spring Type, 3/8 (f) x 3/8 (m), 1/4 (f) Port
Features:
Use on circulating line drops to regulate fluid pressure to one air spray gun or dispensing valve
For a balanced fluid system, pressure control is essential. Graco provides a wide selection of fluid pressure regulators and back pressure valves. Together, these controls keep your system functioning more productively by providing rugged, precise pressure regulation.
- Available with mechanical control or pneumatic control
- Suitable for fluids with low and high viscosities
- Models available with wetted parts made of stainless steel
- Application-oriented pressure ranges
Compatible Equipment
- air spray gun
- dispensing valve
Related Parts
- 204500 - Low Pressure Fluid Regulator, 250 PSI Max
- 203831 - Low Pressure Fluid Regulator, 250 PSI Max
- 205425 - Low Pressure Fluid Regulator, 250 Max psi, 0-60 psi Regulated Pressure, 3.0 GPM, AL, Spring Type, 3/8 (F) x 3/8 (m), 1/4 (F) Port
- 204501 - Low Pressure Fluid Regulator, 20-160 psi, 3 GPM, AL, Spring Type, 3/8 (F) x 3/8 (M), 1/4 (F) Port
Reference Manuals
- 336834 (Page 1) Fluid Regulators List
- 307026 (Page 16) 2:1 Ratio Standard Pump
- 312766 (Page 25) T1 2:1 Ratio Transfer Pump
Specifications:
| Actuation Type | Spring |
| Gauge Port Size (in) | 1/4 |
| Gauge Port Thread Gender | Female |
| Gauge Port Type | NPT |
| Includes | Gauge |
| Inlet Size (in) | 3/8 |
| Inlet Thread Gender | Female |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (GPM) | 3 |
| Maximum Regulated Pressure (psi) | 100 |
| Maximum Viscosity (cP) | 1000 |
| Maximum Working Pressure (MPa) | 1.8 |
| Maximum Working Pressure (psi) | 250 |
| Minimum Regulated Pressure (psi) | 5 |
| Outlet Size (in) | 3/8 |
| Outlet Thread Gender | Male |
| Type | Fluid Regulator |
| Wetted Material | Stainless Steel |
