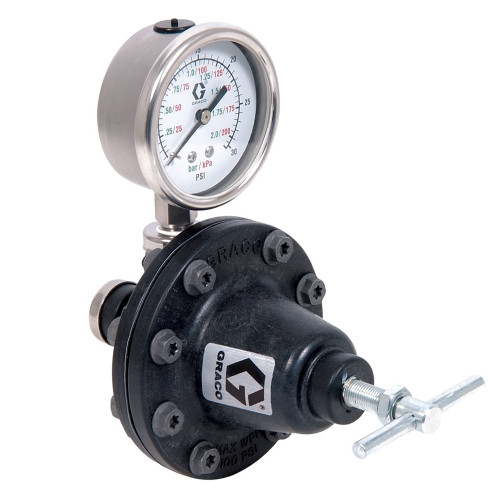

GRACO 236450 - Low Pressure Lightweight Fluid Regulator, Gauge, 20-100 PSI, 0.5 gpm, Acetal, Spring, 1/4(F) x 1/4(F), 1/4(F) Port
Low pressure fluid regulator with spring actuation, designed for precise pressure control in fluid handling systems. Features acetal construction for chemical resistance and lightweight operation, with integrated gauge port for pressure monitoring.
Features:
Fluid pressure regulators control pressure of the downstream fluid, allowing operators to accurately control the pressure to guns, applicators and dispense valves. This ensures the process is stable and maintains the optimal conditions needed for a smooth paint finish, consistent extrusion or steady flow.
- Lightweight composite material is compatible with waterborne materials
- PTFE, stainless steel seat, and carbide ball provide wear resistance
- Pressure adjustment key with locking mechanism protects production settings
Additional Specifications
- Flow Rate: 0.50 GPM max
- Max Working Pressure: 0-7 bar (0-0.7 MPa, 0-100 PSI)
- Regulation Range: 0-7 bar
- Gauge Included: Yes
- Inlet Outlet: 0-60 PSI (0-4 bar, 0-0.4 MPa)
| Actuation Type | Spring |
| Gauge Port Size (in) | 1/4 |
| Gauge Port Type | NPT |
| Includes | Gauge |
| Inlet Size (in) | 1/4 |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (GPM) | 0.5 |
| Maximum Regulated Pressure (psi) | 100 |
| Maximum Viscosity (cP) | 1000 |
| Maximum Working Pressure (MPa) | 0.7 |
| Maximum Working Pressure (psi) | 100 |
| Minimum Regulated Pressure (psi) | 20 |
| Outlet Size (in) | 1/4 |
| Type | Fluid Regulator |
| Wetted Material | Acetal |
Features
- Low pressure regulation 0-7 bar (0-100 PSI)
- Lightweight acetal construction
- Precise fluid pressure control
- Compact design for portable spray systems
- Spring actuation for reliable pressure control
- Acetal construction for chemical resistance and lightweight design
Applications
- Finex airspray systems
- Low-pressure fluid spraying
- Portable spray applications
- Precision coating applications
- Low pressure fluid dispensing systems
- Chemical handling applications requiring corrosion resistance
Compatible Equipment
- Finex Spray Package systems
- GRACO airspray equipment
- Finex Air Spray Package systems
- Husky pump systems
Related Parts
- 241976 - Low Pressure Lightweight Fluid Regulator, 3-30 PSI, 0.5 gpm, Acetal, Air, 1/4(F) x 1/4(F), 1/4(F) Port
- 214706 - Low Pressure Fluid Regulator, 250 Max psi, 5-100 PSI Range, 3.0 GPM, SST, Spring Type, 3/8 (F) x 3/8 (F), 1/4 (F) Port
- 236449 - Low Pressure Lightweight Fluid Regulator, Gauge, 3-30 PSI, 0.5 GPM, Acetal, Spring, 1/4(F) x 1/4(F), 1/4(F) Port
- 236281 - Low Pressure Lightweight Fluid Regulator, Gauge, 3-100 PSI, 0.5 GPM, Acetal, Spring, 1/4(F) x 1/4(m), 1/4(F) Port
- 236216 - Low Pressure Lightweight Fluid Regulator, 3-30 PSI, 0.5 GPM, Acetal, Spring, 1/4(F) x 1/4(F), 1/4(F) Port
Part of the Finex spray system accessories, designed for low-pressure applications where precise fluid regulation is required Part of composite construction series. See instruction manual 308325 for complete details. Part of the fluid regulators category for GRACO spray systems. Also available is part 241976 with 0-60 PSI range.
Reference Manuals
- 300541 (Page 7) Triton
- 320594 (Page 2) Finex™ Spray Package
- 336834 (Page 1) Fluid Regulators List
- 339645 (Page 2) Finex Air Spray Packages Flyer
- 345020 (Page 37) Finishing Accessories
