Item #: 304-1212-MIDLAND
Price: $5.13
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

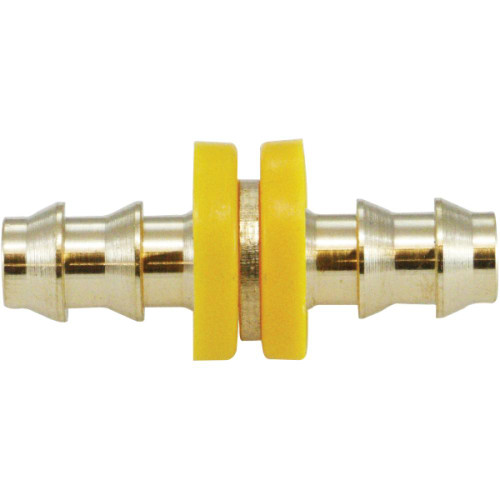

MID-AMERICA FITTINGS 304-1212 Grip-On Hose Splicer, 3/4" Push-On Hose Barbed x 3/4" Push-On Hose Barbed, Brass
| SKU: 304-1212 | |
|---|---|
| Connection Size 1 | 3/4 in |
| Connection Size 2 | 3/4 in |
| Connection Type | Barbed|Barbed |
| Connection Type 1 | Push-On Hose Barbed |
| Connection Type 2 | Push-On Hose Barbed |
| Dimensions | 3.03 in L |
| Fitting Type | Splicer |
| Material | Brass |
| Material Construction | Brass |
| Maximum Operating Pressure | 150 psi |
Typical Application: Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness.
Our parts have been tested to max 150 PSI. Advantages: Easy assembly. No clamps needed!!
Assembly Instructions:
1- Lubricate insert.
2- Hold hose at angle as shown & push on and up
over first barb.
3- Continue to push straight on until hose is seated
under protective plastic cap. Keep hands back from
hose end area so that hose can expand.
Disassembling Instructions:
1- Split hose. Do not cut completely through hose.
Sealing edge of barb could be damaged.
2- Bend hose and remove with a quick pull.
See lead free section for lead free push-on barb fittings.
Stainless steel available at the end of this
section.
MID-AMERICA FITTINGS 304-1212 Grip-On Hose Splicer, 3/4" Push-On Hose Barbed x 3/4" Push-On Hose Barbed, Brass
| SKU: 304-1212 | |
|---|---|
| Connection Size 1 | 3/4 in |
| Connection Size 2 | 3/4 in |
| Connection Type | Barbed|Barbed |
| Connection Type 1 | Push-On Hose Barbed |
| Connection Type 2 | Push-On Hose Barbed |
| Dimensions | 3.03 in L |
| Fitting Type | Splicer |
| Material | Brass |
| Material Construction | Brass |
| Maximum Operating Pressure | 150 psi |
Typical Application: Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness.
Our parts have been tested to max 150 PSI. Advantages: Easy assembly. No clamps needed!!
Assembly Instructions:
1- Lubricate insert.
2- Hold hose at angle as shown & push on and up
over first barb.
3- Continue to push straight on until hose is seated
under protective plastic cap. Keep hands back from
hose end area so that hose can expand.
Disassembling Instructions:
1- Split hose. Do not cut completely through hose.
Sealing edge of barb could be damaged.
2- Bend hose and remove with a quick pull.
See lead free section for lead free push-on barb fittings.
Stainless steel available at the end of this
section.
