Item #: U1-8D-MIDLAND
Price: $1.90
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

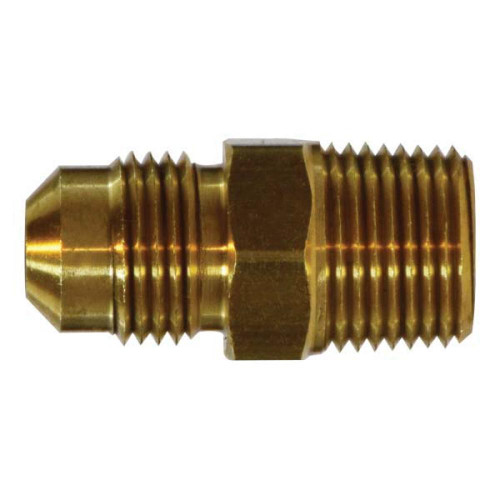

MID-AMERICA FITTINGS U1-8D Adapter, 1/2" Male SAE 45 deg Flared x 1/2" MNPTF, Brass
| SKU: U1-8D | |
|---|---|
| Connection Size 1 | 1/2 in |
| Connection Size 2 | 1/2 in |
| Connection Type | Male SAE Flared|MNPT |
| Connection Type 1 | Male SAE 45 deg Flared |
| Connection Type 2 | MNPTF |
| Dimensions | 1.62 in L |
| Fitting Type | Adapter |
| For Use With | Copper, Brass, Aluminum and Steel Hydraulic Tubing |
| Hex Size | 0.87 in |
| Material | Brass |
| Material Construction | Brass |
| Pressure Rating | 750 psi |
| Temperature Rating | -65 to 250 deg F |
| Thread Size | 3/4-16 x 3/4-16 |
Features:
These fittings are completely interchangeable with full pattern fittings, but have been modified in some way. This modification is usually in the length of the pipe threads. Used in plumbing and light industrial applications
MID-AMERICA FITTINGS U1-8D Adapter, 1/2" Male SAE 45 deg Flared x 1/2" MNPTF, Brass
| SKU: U1-8D | |
|---|---|
| Connection Size 1 | 1/2 in |
| Connection Size 2 | 1/2 in |
| Connection Type | Male SAE Flared|MNPT |
| Connection Type 1 | Male SAE 45 deg Flared |
| Connection Type 2 | MNPTF |
| Dimensions | 1.62 in L |
| Fitting Type | Adapter |
| For Use With | Copper, Brass, Aluminum and Steel Hydraulic Tubing |
| Hex Size | 0.87 in |
| Material | Brass |
| Material Construction | Brass |
| Pressure Rating | 750 psi |
| Temperature Rating | -65 to 250 deg F |
| Thread Size | 3/4-16 x 3/4-16 |
Features:
These fittings are completely interchangeable with full pattern fittings, but have been modified in some way. This modification is usually in the length of the pipe threads. Used in plumbing and light industrial applications
