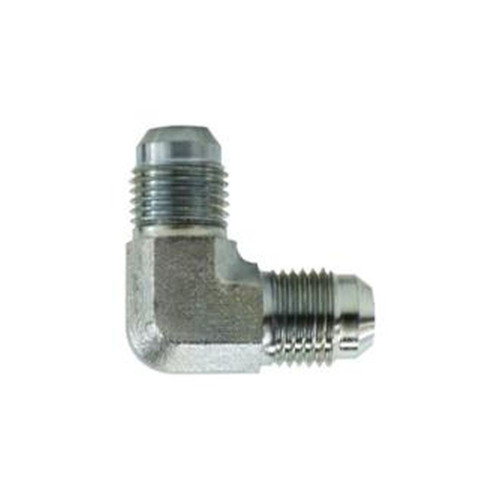

Midland Industries 28780F 90 deg Elbow, 7/8" 37 deg Male JIC Flared x 1/2" MNPT, Brass
| SKU: 28780F | |
|---|---|
| Additional Information | 1.45 x 1.47 in Center to End |
| Connection Size 1 | 7/8 in |
| Connection Size 2 | 1/2 in |
| Connection Type | Male JIC|MNPT |
| Connection Type 1 | 37 deg Male JIC Flared |
| Connection Type 2 | MNPT |
| Fitting Type | 90 deg Elbow |
| For Use With | Copper, Brass, Aluminum, Steel Hydraulic Tubing That Can Be Flared |
| Material | Brass |
| Material Construction | Forged Brass |
| Pressure Rating | 1265 psi |
| Temperature Rating | -65 to 250 deg F |
| Thread Size | 7/8-14 x 1/2-14 |
| Tube OD | 5/8 in |
