Item #: 32414-MIDLAND
Price: $3.61
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

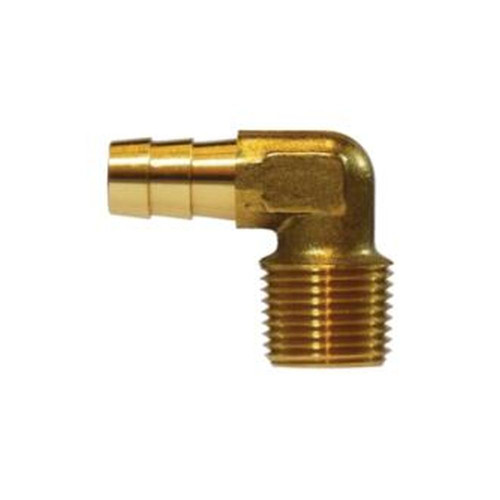

Midland Industries 32414 90-deg Elbow, 3/8" x 1/8", Hose Barb, Brass
| SKU: 32414 | |
|---|---|
| Additional Information | 0.44 in Body Size, 1.01 x 1.01 in Center to End, 0.040 lb Weight |
| Connection Size 1 | 3/8 in |
| Connection Size 2 | 1/8 in |
| Connection Type | Hose Barb | Hose Barb |
| Connection Type 1 | Hose Barb |
| Connection Type 2 | Hose Barb |
| Fitting Type | 90-deg Elbow |
| For Use With | Hose clamp, similar-type clamp or a crimped ferrule |
| Material | Brass |
| Material Construction | Brass |
| Maximum Operating Pressure | 150 psi |
| Operating Temperature | -40 to 160 deg F |
Features:
Temperature and Working Pressure: Ranges From -400F to + 1600F at 150 PSI maximum.
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical. Note: These fittings are intended for use with hose clamp, similar type clamp or a crimped ferrule.
Assembly Instructions:
1- Cut hose cleanly and squarely to length.
2- Slide clamp on hose.
3- Lubricate hose. Push hose on fitting until hose bottoms against stop ring or hex.
4- Position hose clamp as shown below and secure with a screwdriver or wrench. Maintain “A” dimension
noted below for proper clamp positioning.
Midland Industries 32414 90-deg Elbow, 3/8" x 1/8", Hose Barb, Brass
| SKU: 32414 | |
|---|---|
| Additional Information | 0.44 in Body Size, 1.01 x 1.01 in Center to End, 0.040 lb Weight |
| Connection Size 1 | 3/8 in |
| Connection Size 2 | 1/8 in |
| Connection Type | Hose Barb | Hose Barb |
| Connection Type 1 | Hose Barb |
| Connection Type 2 | Hose Barb |
| Fitting Type | 90-deg Elbow |
| For Use With | Hose clamp, similar-type clamp or a crimped ferrule |
| Material | Brass |
| Material Construction | Brass |
| Maximum Operating Pressure | 150 psi |
| Operating Temperature | -40 to 160 deg F |
Features:
Temperature and Working Pressure: Ranges From -400F to + 1600F at 150 PSI maximum.
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical. Note: These fittings are intended for use with hose clamp, similar type clamp or a crimped ferrule.
Assembly Instructions:
1- Cut hose cleanly and squarely to length.
2- Slide clamp on hose.
3- Lubricate hose. Push hose on fitting until hose bottoms against stop ring or hex.
4- Position hose clamp as shown below and secure with a screwdriver or wrench. Maintain “A” dimension
noted below for proper clamp positioning.
