Item #: 32958-MIDLAND
Price: $6.65
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

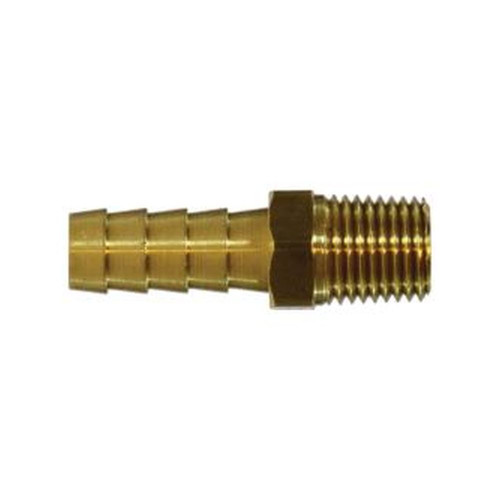

Midland Industries 32958 Rigid Adapter, 7/16 in Hose x 1/2" Male NPTF, Brass
| SKU: 32958 | |
|---|---|
| Connection Size 1 | 7/16 in |
| Connection Size 2 | 1/2 in |
| Connection Type | Hose|MNPT |
| Connection Type 1 | Hose |
| Connection Type 2 | Male NPTF |
| Dimensions | 1.87 in L |
| Fitting Type | Adapter |
| For Use With | Hose Clamp, Similar Type Clamp or A Crimped Ferrule |
| Hex Size | 0.88 in |
| Material | Brass |
| Material Construction | Brass |
| Maximum Operating Pressure | 150 psi |
| Operating Temperature | -40 to 160 deg F |
| Thread Size | 1/2-14 |
Features:
Temperature and Working Pressure: Ranges From -400F to + 1600F at 150 PSI maximum.
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical. Note: These fittings are intended for use with hose clamp, similar type clamp or a crimped ferrule.
Assembly Instructions:
1- Cut hose cleanly and squarely to length.
2- Slide clamp on hose.
3- Lubricate hose. Push hose on fitting until hose bottoms against stop ring or hex.
4- Position hose clamp as shown below and secure with a screwdriver or wrench. Maintain “A” dimension
noted below for proper clamp positioning.
Midland Industries 32958 Rigid Adapter, 7/16 in Hose x 1/2" Male NPTF, Brass
| SKU: 32958 | |
|---|---|
| Connection Size 1 | 7/16 in |
| Connection Size 2 | 1/2 in |
| Connection Type | Hose|MNPT |
| Connection Type 1 | Hose |
| Connection Type 2 | Male NPTF |
| Dimensions | 1.87 in L |
| Fitting Type | Adapter |
| For Use With | Hose Clamp, Similar Type Clamp or A Crimped Ferrule |
| Hex Size | 0.88 in |
| Material | Brass |
| Material Construction | Brass |
| Maximum Operating Pressure | 150 psi |
| Operating Temperature | -40 to 160 deg F |
| Thread Size | 1/2-14 |
Features:
Temperature and Working Pressure: Ranges From -400F to + 1600F at 150 PSI maximum.
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical. Note: These fittings are intended for use with hose clamp, similar type clamp or a crimped ferrule.
Assembly Instructions:
1- Cut hose cleanly and squarely to length.
2- Slide clamp on hose.
3- Lubricate hose. Push hose on fitting until hose bottoms against stop ring or hex.
4- Position hose clamp as shown below and secure with a screwdriver or wrench. Maintain “A” dimension
noted below for proper clamp positioning.
