Item #: 941122NP-MIDLAND
Price: $11.77
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

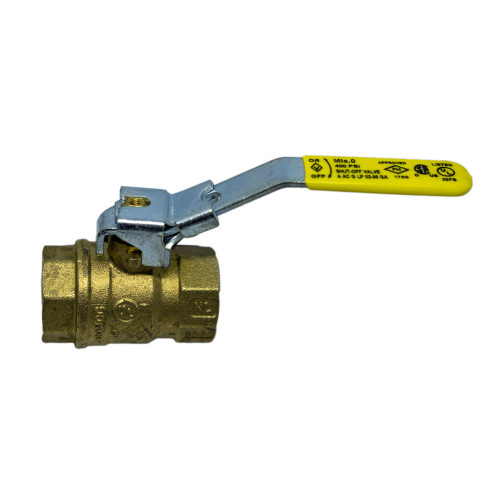

Midland Industries 941122NP Ball Valve, 3/8" Nominal, FPT x FPT, 600 psi WOG Pressure, -20 to 300 deg F
| SKU: 941122NP | |
|---|---|
| Additional Information | 150 psi WSP Service Pressure, 3/8-18 Thread Size, 29 inHg Vacuum Services, 0.330 lb Weight |
| Ball Material | Stainless Steel |
| Body Material | Forged Brass |
| Connection Type | FPT x FPT |
| Dimensions | 1.73 in L |
| Domestic/Import | Import |
| Finish | Nickel-Plated |
| Flow Coefficient (Cv) | 8.23 Cv |
| Handle Material | Stainless Steel |
| Inlet to Outlet Length | 1.73 in |
| Nominal Size | 3/8 in |
| Operator Type | Locking Handle |
| Packing Material | PTFE |
| Port Type | Full |
| Pressure Rating | 600 psi WOG |
| Seat Material | PTFE |
| Stem Material | Stainless Steel |
| Temperature Rating | -20 to 300 deg F |
| Top to Inlet Center | 1.84 in |
| Trim Material | Stainless Steel Handle Nut and Lock Washer/Nickel-Plated Brass Packing Nut/Fluoroelastomer O-Ring |
Midland Industries 941122NP Ball Valve, 3/8" Nominal, FPT x FPT, 600 psi WOG Pressure, -20 to 300 deg F
| SKU: 941122NP | |
|---|---|
| Additional Information | 150 psi WSP Service Pressure, 3/8-18 Thread Size, 29 inHg Vacuum Services, 0.330 lb Weight |
| Ball Material | Stainless Steel |
| Body Material | Forged Brass |
| Connection Type | FPT x FPT |
| Dimensions | 1.73 in L |
| Domestic/Import | Import |
| Finish | Nickel-Plated |
| Flow Coefficient (Cv) | 8.23 Cv |
| Handle Material | Stainless Steel |
| Inlet to Outlet Length | 1.73 in |
| Nominal Size | 3/8 in |
| Operator Type | Locking Handle |
| Packing Material | PTFE |
| Port Type | Full |
| Pressure Rating | 600 psi WOG |
| Seat Material | PTFE |
| Stem Material | Stainless Steel |
| Temperature Rating | -20 to 300 deg F |
| Top to Inlet Center | 1.84 in |
| Trim Material | Stainless Steel Handle Nut and Lock Washer/Nickel-Plated Brass Packing Nut/Fluoroelastomer O-Ring |
