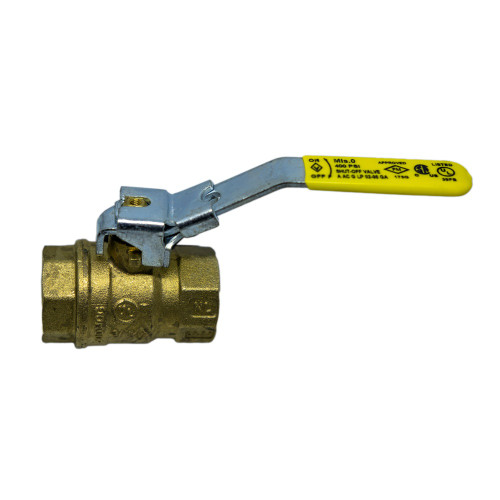

Midland Industries 941127NP Ball Valve, 1-1/2" Nominal, FPT x FPT, 600 psi WOG Pressure, -20 to 300

Item #: 941127NP-MIDLAND

Price: $75.26

Most orders over $299
ship for free | See Details

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

Essential Accessories

Midland Industries 941127NP Ball Valve, 1-1/2" Nominal, FPT x FPT, 600 psi WOG Pressure, -20 to 300 deg F

SKU: 941127NP
Additional Information	150 psi WSP Service Pressure, 1-1/2-11-1/2 Thread Size, 29 inHg Vacuum Services, 2.450 lb Weight
Ball Material	Stainless Steel
Body Material	Forged Brass
Connection Type	FPT x FPT
Dimensions	3.88 in L
Domestic/Import	Import
Finish	Nickel-Plated
Flow Coefficient (Cv)	131.93 Cv
Handle Material	Stainless Steel
Inlet to Outlet Length	3.88 in
Nominal Size	1-1/2 in
Operator Type	Locking Handle
Packing Material	PTFE
Port Type	Full
Pressure Rating	600 psi WOG
Seat Material	PTFE
Stem Material	Stainless Steel
Temperature Rating	-20 to 300 deg F
Top to Inlet Center	3.18 in
Trim Material	Stainless Steel Handle Nut and Lock Washer/Nickel-Plated Brass Packing Nut/Fluoroelastomer O-Ring
