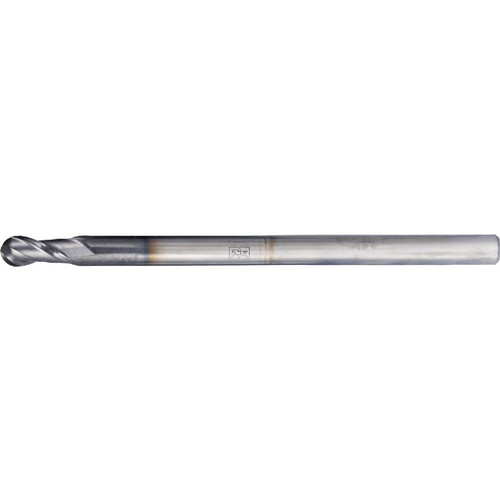

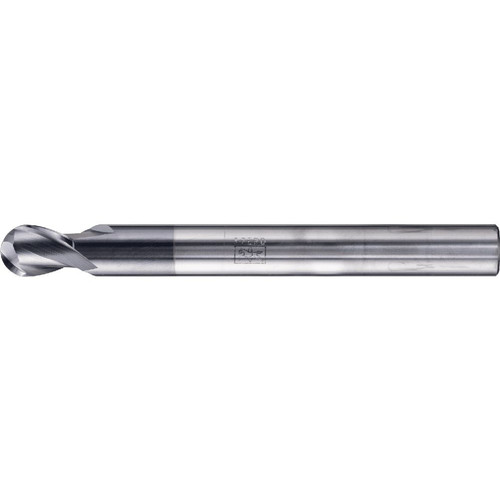

PFERD 23003004 Ball Nose End Mill, 2-flutes, 3/8" Dia, 3/4" APMX, 6" OAL, Cyl. Shank

PFERD 23003004 Ball Nose End Mill, 2-flutes, 3/8" Dia, 3/4" APMX, 6" OAL, Cyl. Shank

Item #: 23003004

MSRP: Price: $80.00

Price: with strikethrough $80.00

Retail Price:

Sale Price: Price $76.00

(You save $4.00 )

Most orders over $299
ship for free | See Details

Have a Question?
ASK NATE

Get Expert Advice or

Call 888-654-8898

Get Expert Advice or

Call 888-654-8898

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

FIND MY PRODUCT

Essential Accessories

Item Description

PFERD 23003004 Ball Nose End Mill, 2-flutes, 3/8" Dia, 3/4" APMX, 6" OAL, Cyl. Shank

The cutting tools have been optimally designed for work on the most important materials and the most common stationary applications. PFERD manufactures solid tungsten carbide mills from tungsten carbide optimized for specific applications according to the very latest standards. They are suitable for a wide range of milling operations on lathes and milling machines and in automated centers.

Advantages:

High productivity due to optimum stock removal
rate.
Long tool life due to modern tool coating.

Application:

Milling

Materials that can be worked:

Stainless steel (INOX)
Steel
Steel, cast steel
Steel materials with a hardness > 54 HRC
Steels up to 370 HV (< 38 HRC)
Steels over 220 HV (> 95 HB)
Thermoplastics
Tool steels
Tough aluminium alloys
White annealed cast iron (GTW, GJMW)
Wood
Zinc
Aluminum
Annealed cast iron
Black annealed cast iron (GTS, GJMB)
Brass
Bronze
Case-hardened steels
Cast iron
Cast steel
Casting scale
Chipboard
Cobalt-based alloys
Copper
Ductile cast iron
Ferrite (magnetic material)
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Hard aluminium alloys
Hard non-ferrous metal
Hardened, heat-treated steels over 370 HV (38 HRC)
Mill scale
Other non-ferrous metals
Plastics
Roller-bearing and ball-bearing steels
Scale
Soft aluminium alloys
Soft non-ferrous metal

Specifications:

Length	2.5"
Diameter	3/8"
End Mill Material	SCM solid tungsten carbide end mill
Coating	TiAlN
Corner Radius	3/16"
Corner type	Radius
Cutting Diameter	3/8"
Cutting Edge Count	2 pcs.
Cutting material	AL40
Depth of cut - Max.	3/4"
Feed direction	x,y,z
Number of Flutes	2
Overall length	2.5"
Helix angles	30°
Shank diameter	3/8"
Shank Type	HA (DIN6535)

Specifications

PFERD 23003004 Ball Nose End Mill, 2-flutes, 3/8" Dia, 3/4" APMX, 6" OAL, Cyl. Shank

Advantages:

High productivity due to optimum stock removal
rate.
Long tool life due to modern tool coating.

Application:

Milling

Materials that can be worked:

Stainless steel (INOX)
Steel
Steel, cast steel
Steel materials with a hardness > 54 HRC
Steels up to 370 HV (< 38 HRC)
Steels over 220 HV (> 95 HB)
Thermoplastics
Tool steels
Tough aluminium alloys
White annealed cast iron (GTW, GJMW)
Wood
Zinc
Aluminum
Annealed cast iron
Black annealed cast iron (GTS, GJMB)
Brass
Bronze
Case-hardened steels
Cast iron
Cast steel
Casting scale
Chipboard
Cobalt-based alloys
Copper
Ductile cast iron
Ferrite (magnetic material)
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Hard aluminium alloys
Hard non-ferrous metal
Hardened, heat-treated steels over 370 HV (38 HRC)
Mill scale
Other non-ferrous metals
Plastics
Roller-bearing and ball-bearing steels
Scale
Soft aluminium alloys
Soft non-ferrous metal

Specifications:

Length	2.5"
Diameter	3/8"
End Mill Material	SCM solid tungsten carbide end mill
Coating	TiAlN
Corner Radius	3/16"
Corner type	Radius
Cutting Diameter	3/8"
Cutting Edge Count	2 pcs.
Cutting material	AL40
Depth of cut - Max.	3/4"
Feed direction	x,y,z
Number of Flutes	2
Overall length	2.5"
Helix angles	30°
Shank diameter	3/8"
Shank Type	HA (DIN6535)
