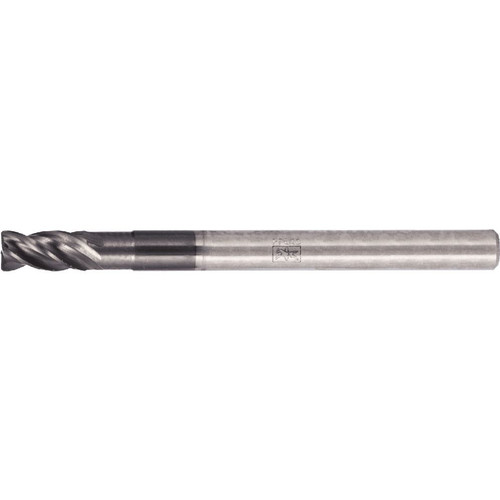

PFERD 23003045 Chamfered End Mill, 4-flutes, 3/16" Dia, 3/8" APMX, 2-1/4" OAL, Cyl. Shank

PFERD 23003045 Chamfered End Mill, 4-flutes, 3/16" Dia, 3/8" APMX, 2-1/4" OAL, Cyl. Shank

Item #: 23003045

MSRP: Price: $28.34

Price: with strikethrough $28.34

Retail Price:

Sale Price: Price $26.92

(You save $1.42 )

Most orders over $299
ship for free | See Details

Have a Question?
ASK NATE

Get Expert Advice or

Call 888-654-8898

Get Expert Advice or

Call 888-654-8898

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

FIND MY PRODUCT

Essential Accessories

Item Description

PFERD 23003045 Chamfered End Mill, 4-flutes, 3/16" Dia, 3/8" APMX, 2-1/4" OAL, Cyl. Shank

PFERD supplies cutting tools for all of the most common stationary applications.PFERD solid carbide mills are suitable for a wide range of milling operations on lathes and milling machines, and in automated centers. The tools’ optimum stock removal rate ensures high productivity.

Advantages:

Design with neck chip channel.
High productivity due to
optimum stock removal rate.
Long tool life due to modern
tool coating.

Application:

Milling

Materials that can be worked:

Stainless steel (INOX)
Steel
Steel, cast steel
Steels up to 370 HV (< 38 HRC)
Steels over 220 HV (> 95 HB)
Thermoplastics
Titanium
Titanium alloys
Tool steels
Tough aluminium alloys
White annealed cast iron (GTW, GJMW)
Wood
Zinc
Aluminum
Annealed cast iron
Black annealed cast iron (GTS, GJMB)
Brass
Bronze
Case-hardened steels
Cast iron
Cast steel
Casting scale
Chipboard
Cobalt-based alloys
Copper
Ductile cast iron
Ferrite (magnetic material)
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Hard aluminium alloys
Hard non-ferrous metal
Hardened, heat-treated steels over 370 HV (38 HRC)
Mill scale
Nickel-based alloys (e.g. Inconell and Hastelloy)
Nickel or titanium-based superalloys
Other non-ferrous metals
Plastics
Roller-bearing and ball-bearing steels
Scale
Soft aluminium alloys
Soft non-ferrous metal

Specifications:

Length	2.25"
Diameter	3/16"
End Mill Material	SCM solid tungsten carbide end mill
Coating	TiAlN
Corner Chamfer Width	0.015"
Corner type	Chamfer corner design
Cutting Diameter	3/16"
Cutting Edge Count	4 pcs.
Cutting material	AL40
Depth of cut - Max.	3/8"
Number of Flutes	4
Overall length	2.25"
Helix angles	35°/38°
Neck Diameter	0.176"
Shank diameter	3/16"
Shank Type	HA (DIN6535)
Usable length	9/16"
