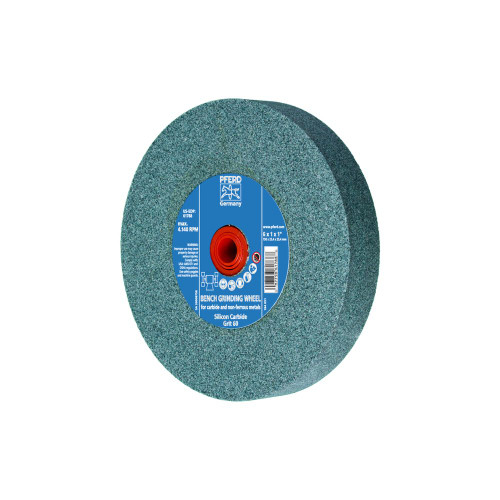

PFERD 61788 6" x 1" Vitrified Bench Wheel 1" A.H., Silicon Carbide, 60 Grit
PFERD offers a very extensive range of vitrified-bonded and resinoid-bonded mounted points and other grinding tools. Designed to meet individual grinding application needs,these products come in a broad range of grain types, grit sizes, hardness grades and shapes.
The mounted points are manufactured on automated, state-of-the-art production lines to high standards of dimensional accuracy and stability, consistent quality and close tolerances.
PFERD offers a very wide range of high-quality bench grinding wheels for working with a large variety of materials and for many different applications. Bench grinding wheels are available with different dimensions, grains and abrasives.
CARBIDE type bench grinding wheels are used on hard materials, such as for sharpening tungsten carbide tools.
Materials that can be worked:- Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)
- Glass
- Tungsten carbide
- Steel materials with a hardness over 54 HRC
- Steel, cast steel
Applications:- Deburring
- Work on edges (chamfering, rounding)
- Work on edges
- Sharpening
Drive types:- Bench grinder
- Stationary machines
Specifications:
| Included bushings | 3/4, 5/8, 1/2 |
| Grit size | 60 |
| Max. RPM | 4140 RPM |
| Bore | 1 |
| Shape | Flat (type 1) |
| Thickness | 1 |
| Diameter nominal | 6 |
| Packing unit | 1 pcs. |
| EDP number | 61788 |
