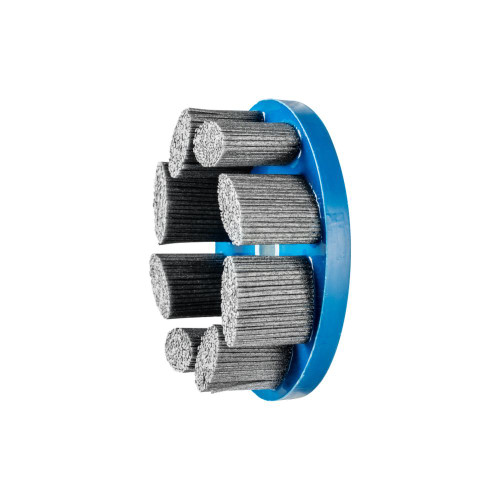

PFERD 83970 6" M-BRAD Disc Brush - Standard Density Rectangular Filament, SiC 80 Grit
PFERD power and maintenance brushes are used where exacting demands are placed on efficiency and outcome of surface conditioning, deburring, and cleaning operations.
Long-trim M-BRAD nylon abrasive filament makes this product particularly suitable for deburring complex geometries such as gears. Developed specially for industrial use on stationary machines with magnetic conveyor belts.
Materials that can be worked:- Aluminium
- Cast iron
- Duroplastics
- Other non-ferrous metals
- Stainless steel (INOX)
- Steel, cast steel
- Thermoplastics
- Wood
Applications:- Roughening
- Deburring
- Cleaning
- Structuring (matt finishing, brush matting and satin finishing)
Drive types:- Robot applications
- Stationary machines
- Machine tool
Specifications:
| Filament-material | M-BRAD nylon abrasive filament, silicon carbide SiC |
| Diameter | 6 |
| Arbor hole | 7/8 |
| Trim length | 1-1/2 |
| Filament geometries | rectangular |
| Filament dimensions | .045x.090/180 |
| Recom. RPM from | 1000 RPM |
| Recom. RPM to | 1600 RPM |
| Max. RPM | 2500 RPM |
| Packing unit | 1 pcs. |
| EDP number | 83970 |
