GRACO 25B285 - ProControl 1KE Plus Open Loop Fluid Pressure Control, Advanced Display Control Module, G3000 meter, fluid regulator, I/P

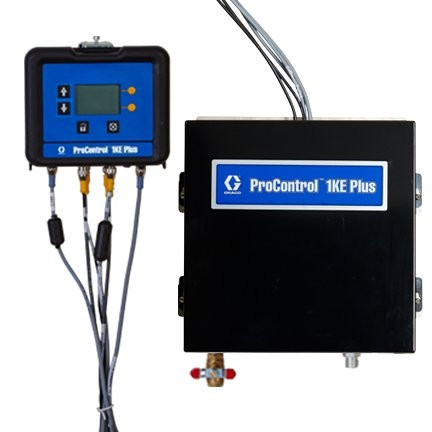

ProControl TKE Plus package featuring flow monitor with open loop fluid pressure control, including fluid panel and I/P to operate the fluid pressure regulator. Includes Advanced Display Control Module (ADCM) with G3000 meter for precise fluid and atomising air control in automated spray applications.
This ProControl 1KE Plus package provides an off-the-shelf solution to actively manage one component (1K) fluids, improve spray performance, and increase efficiency. Higher specification packages and upgrade kits are available for additional capabilities.
- Flow monitor tracks precisely how much material goes through fluid lines, so that you can improve finishing processes and reduce waste.
- Open loop control allows operators to set and adjust fluid pressure to target level.
- Fluid management package works with manual paint spray guns or automatic spray applicators.
Additional Specifications
- Control Type: Open loop fluid pressure control
- Meter Type: G3000 meter
- Regulator Type: Standard 1:1 fluid regulator
- Ip Quantity: 1
| Control Box Voltage (V dc) | 15 |
| Flow Control Type | Fluid Flow Monitor |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Fluid Inlet Pressure (psi) | 300 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Working Pressure (MPa) | 2.1 |
| Maximum Working Pressure (psi) | 300 |
| Minimum Operating Temperature (°F) | 32 |
| Power Source | Order separate |
| System Type | Fluid Monitoring |
| Type | Control Module |
Features
- Flow monitor with open loop fluid pressure control
- Includes fluid panel and I/P to operate fluid pressure regulator
- Advanced Display Control Module (ADCM) with software and bracket
- G3000 meter for flow monitoring
- Standard 1:1 fluid regulator
- Complete integrated control package
Applications
- Automated spray applications requiring fluid pressure control
- Industrial coating processes
- Fluid dispensing applications
- Process control where open loop fluid pressure management is needed
Compatible Equipment
- G3000 flow meters
- Standard 1:1 fluid regulators
- ProControl TKE Plus systems
- ProControl 1KE Plus Models
- applicator gun atomizing air control applications
Related Parts
- 25B283 - ProControl 1KE Plus Advanced Display Control Module (ADCM) w/ software & bracket only
- 25B284 - ProControl 1KE Plus Flow Monitor Only, Advanced Display Control Module, G3000 meter, software, short cable, no fluid panel
- 25B286 - ProControl 1KE Plus Open Loop Fluid Pressure Control, Advanced Display Control Module, G3000 meter, I/P
- 25B287
- 25B288
- 25B289 - ProControl 1KE Plus Gun Atomizing Air Control w/ I/P & air regulator & gauge
- 25B290
- 25B291
- 25B292 - ProControl 1KE Plus Closed Loop Fluid Pressure / Flow Control ADCM G3000 meter Fluid Regulator Pressure Transducer & I/P
- 25B293
Kit Contents
- Advanced Display Control Module (ADCM) with software and bracket
- Flow monitor with G3000 meter
- Fluid panel with I/P for fluid pressure regulator operation
- Standard 1:1 fluid regulator
- Fluid Flow Meter (G3000 high-pressure meter)
- Fluid Regulator (GRACO 1:1 low-flow air-operated regulator 24C375)
- Current-to-Pressure I/P Transducer (quantity: 1)
This is part of the ProControl TKE Plus package series. The G3000 meter is the standard recommended meter. For hazardous locations, refer to meter brochure 336165 and instruction manuals for details. This is a complete system that includes fluid flow meter, fluid regulator, and I/P transducer. The G3000 meter is a high-pressure meter (289813). The fluid regulator is a GRACO 1:1 low-flow air-operated regulator. System is for open setpoint fluid pressure control applications. ProControl 1KE Plus model 25B289 is for applicator gun atomizing air control only and will have no fluid inlet or outlet connections. Model 25B288 is mentioned as a Flow Monitor model that has fluid outlet connection at the fluid regulator outlet.
Reference Manuals
- 345008 (Page 5) ProControl 1KE Plus
- 3A6948 (Page 6) ProControl™ 1KE Plus Models for Management of Fluid and Air
- 3A7323 (Page 1) ProControl 1KE Plus Pressure Sensor Kits
