Reelcraft 5400-OHP - 1/4" x 30 ft. 5000 psi, Grease Hose Reel

Item #: 5400-OHP

MSRP: Price: $501.63

Price: with strikethrough $563.00

Retail Price:

Sale Price: Price $465.80

(You save $35.83 )

QTY:

Most orders over $299
ship for free | See Details

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

Related Items

Reelcraft 5400-OHP - 1/4" x 30 ft. 5000 psi, Grease Reel without Hose

Reelcraft Series 5000 hose reels are durable and compact for a wide range of applications with critical space requirements.

Hose is plumbed into the base to eliminate the risk of undue stress on the swivel
The bent tube swivel design offers a smooth hose transition onto the spool
The swivel is nested inside the spool for protection from impact and the environment
Hose not included on this model
Base plate and upright are constructed from 14 gauge steel; the guide arm is 13 gauge and the spool is 16 gauge steel
The reliable speed latch allows for positive locking of the spool in two positions per rotation
Individually powder-coated steel components provide maximum protection from premature corrosion
Robotically welded steel base offers maximum strength and consistent quality
Guide arm adjusts to two positions
Made in the USA

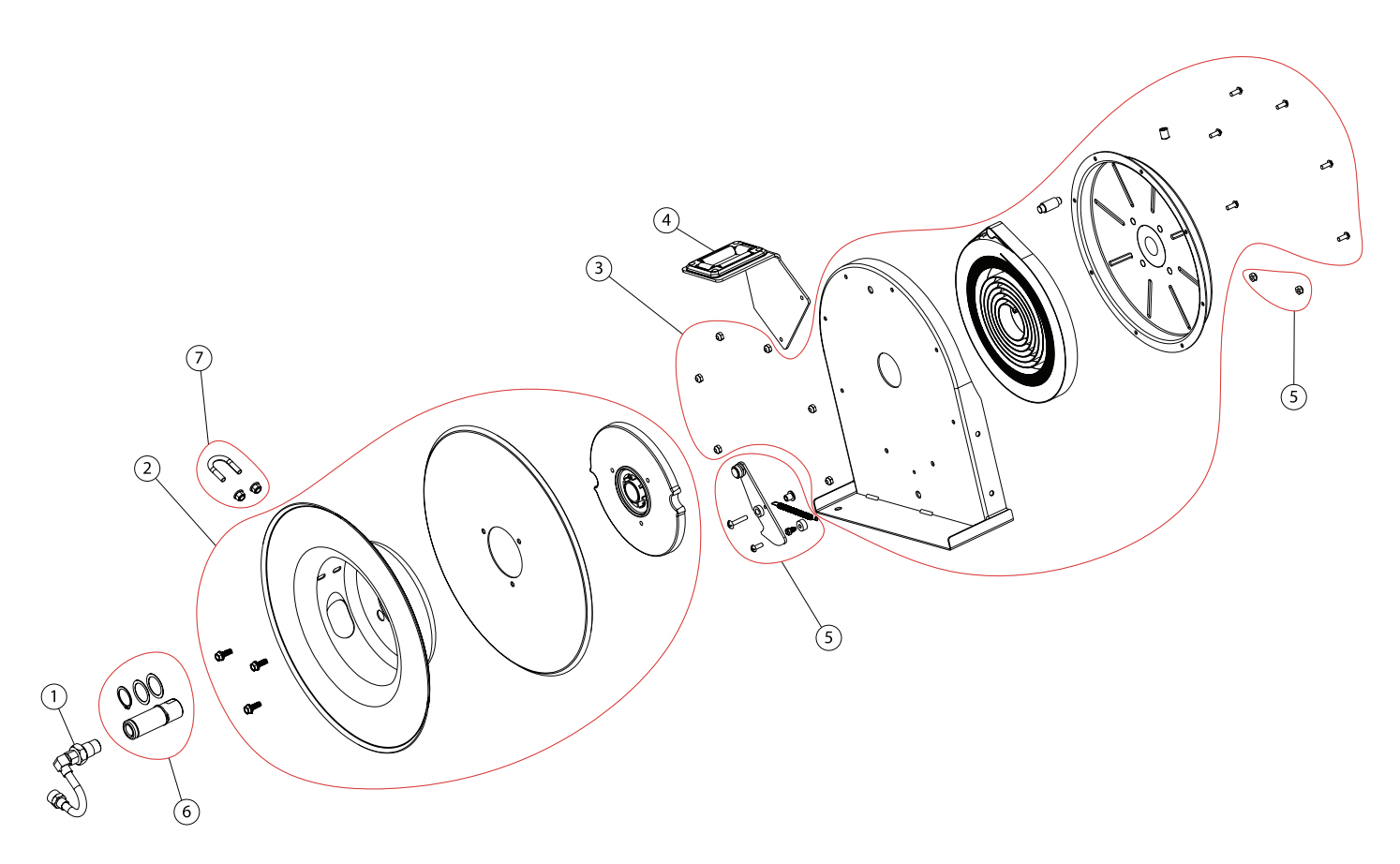

5400-OHP Parts List (7 Items) ▼

Item #	# Req.	Part Number	Description
1	1	S602492	Swivel Assembly
2	1	S260022	Spool Assembly
3	1	S500101-3	Upright and Drive Spring Kit
4	1	S500107	Guide Arm Kit
5	1	S602990	Latch Kit
6	1	S602306	Shaft Kit
7	1	S3-117440	U-Bolt Kit
