Reelcraft 600801-12 - 340° Pivot Base for 30000 Series 12" Reels
MSRP:
Price:
$220.67
Price: with strikethrough $342.00
Retail Price:
Sale Price: Price $203.69
Item #: BA36112-LT
Price: with strikethrough $1,290.00
Retail Price:
Sale Price: Price $1,096.50
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.
Price: with strikethrough $342.00
Retail Price:
Sale Price: Price $203.69
Reelcraft BA36112-LT - 1/4" x 250 ft. 200 psi, T-Grade Gas Welding Reel
Reelcraft Series BA gas welding hose reels are designed to improve safety in the work area with an increase in productivity and efficiency. The durable baked-on red powder-coated finish provides maximum corrosion resistance. The reel frame, spool, and drum are fabricated of heavy-gauge steel.

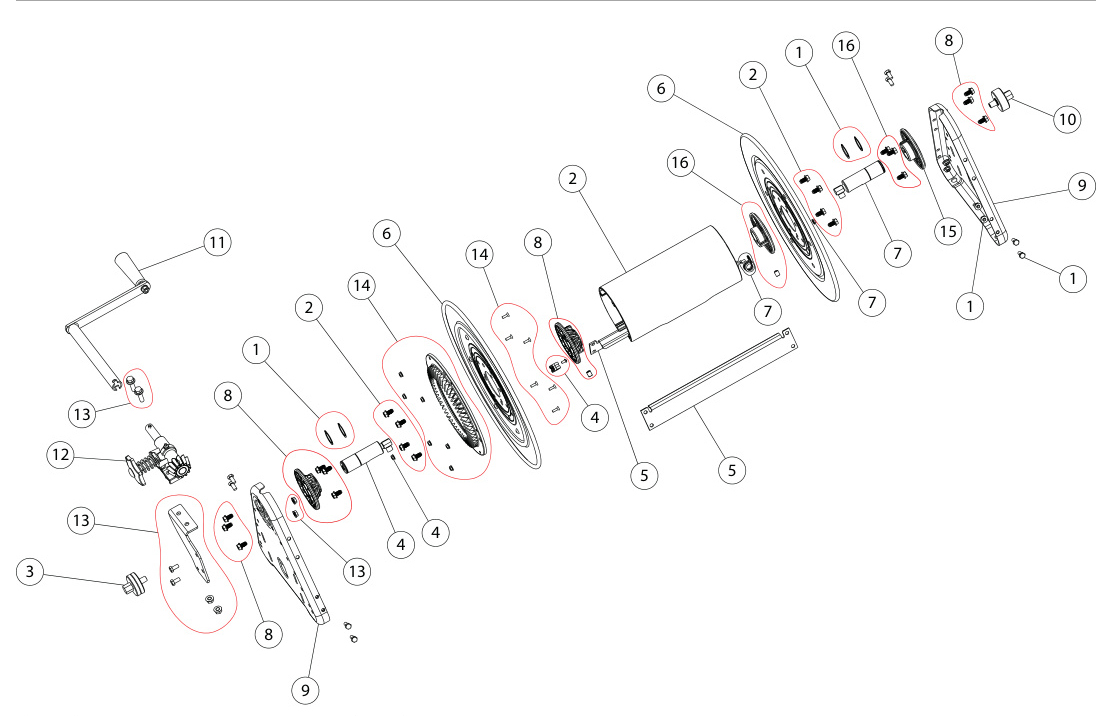

| Item # | # Req. | Part Number | Description |
|---|---|---|---|
| 1 | 2 | S602948 | Hardware Kit |
| 2 | 1 | S263426-12 | Drum Kit |
| 3 | 1 | S600256-1 | Swivel Acetylene Kit |
| 4 | 1 | S602987-1 | Acetylene Shaft Kit |
| 5 | 1 | S602955-2 | Tie Plate Kit |
| 6 | 1 | S602949 | Head Kit |
| 7 | 1 | S602987-2 | Oxygen Shaft Kit |
| 8 | 2 | S602950 | Hub Kit |
| 9 | 1 | S602951 | End Frame Kit |
| 10 | 1 | S600257-1 | Oxygen Swivel Kit |
| 11 | 1 | S390838-10-35 | Handle Kit |
| 12 | 1 | S390843-2 | Hand Rewind Assembly Kit |
| 13 | 1 | S262344 | Crank Support Kit |
| 14 | 1 | S323058M-ANZ | Bevel Ring Gear Kit |
| 15 | 1 | S600640 | Hub & Bushing Assembly |
| 16 | 1 | S602688 | Aluminum Collar Kit |
| Weight | 57 lbs |
| Series | 30000 |
| Hose I.D. | 1/4" |
| Hose O.D. | 0.53" |
| Hose Length | 250' |
| Pressure | 200 psi |
| Inlet | 1/4" NPT(F) |
| Reel Outlet | 9/16 – 18(M) |
| Hose Included | No |
| Max Temperature | 210 °F |
| UPC | 699567002475 |
| Carton Dimensions | 27.75" x 18" x 22.25" |
| Internal Fluid Path | Steel / Brass |
| Swivel Assembly | Aluminum |
| Swivel Seal | Buna |
| Weight | 57 lbs |
| Series | 30000 |
| Hose I.D. | 1/4" |
| Hose O.D. | 0.53" |
| Hose Length | 250' |
| Pressure | 200 psi |
| Inlet | 1/4" NPT(F) |
| Reel Outlet | 9/16 – 18(M) |
| Hose Included | No |
| Max Temperature | 210 °F |
| UPC | 699567002475 |
| Carton Dimensions | 27.75" x 18" x 22.25" |
| Internal Fluid Path | Steel / Brass |
| Swivel Assembly | Aluminum |
| Swivel Seal | Buna |
Reelcraft BA36112-LT - 1/4" x 250 ft. 200 psi, T-Grade Gas Welding Reel
Reelcraft Series BA gas welding hose reels are designed to improve safety in the work area with an increase in productivity and efficiency. The durable baked-on red powder-coated finish provides maximum corrosion resistance. The reel frame, spool, and drum are fabricated of heavy-gauge steel.
| Item # | # Req. | Part Number | Description |
|---|---|---|---|
| 1 | 2 | S602948 | Hardware Kit |
| 2 | 1 | S263426-12 | Drum Kit |
| 3 | 1 | S600256-1 | Swivel Acetylene Kit |
| 4 | 1 | S602987-1 | Acetylene Shaft Kit |
| 5 | 1 | S602955-2 | Tie Plate Kit |
| 6 | 1 | S602949 | Head Kit |
| 7 | 1 | S602987-2 | Oxygen Shaft Kit |
| 8 | 2 | S602950 | Hub Kit |
| 9 | 1 | S602951 | End Frame Kit |
| 10 | 1 | S600257-1 | Oxygen Swivel Kit |
| 11 | 1 | S390838-10-35 | Handle Kit |
| 12 | 1 | S390843-2 | Hand Rewind Assembly Kit |
| 13 | 1 | S262344 | Crank Support Kit |
| 14 | 1 | S323058M-ANZ | Bevel Ring Gear Kit |
| 15 | 1 | S600640 | Hub & Bushing Assembly |
| 16 | 1 | S602688 | Aluminum Collar Kit |
| Weight | 57 lbs |
| Series | 30000 |
| Hose I.D. | 1/4" |
| Hose O.D. | 0.53" |
| Hose Length | 250' |
| Pressure | 200 psi |
| Inlet | 1/4" NPT(F) |
| Reel Outlet | 9/16 – 18(M) |
| Hose Included | No |
| Max Temperature | 210 °F |
| UPC | 699567002475 |
| Carton Dimensions | 27.75" x 18" x 22.25" |
| Internal Fluid Path | Steel / Brass |
| Swivel Assembly | Aluminum |
| Swivel Seal | Buna |
| Weight | 57 lbs |
| Series | 30000 |
| Hose I.D. | 1/4" |
| Hose O.D. | 0.53" |
| Hose Length | 250' |
| Pressure | 200 psi |
| Inlet | 1/4" NPT(F) |
| Reel Outlet | 9/16 – 18(M) |
| Hose Included | No |
| Max Temperature | 210 °F |
| UPC | 699567002475 |
| Carton Dimensions | 27.75" x 18" x 22.25" |
| Internal Fluid Path | Steel / Brass |
| Swivel Assembly | Aluminum |
| Swivel Seal | Buna |
