Reelcraft C23012-310 - 5/8" x 150' Versatile Aluminum Spray Reel, 3000 psi, Stainless Swivel

Reelcraft C23012-310 - 5/8" x 150' Versatile Aluminum Spray Reel, 3000 psi, Stainless Swivel

Reelcraft C23012-310 - 5/8" x 150' Versatile Aluminum Spray Reel, 3000 psi, Stainless Swivel

Reelcraft C23012-310 - 5/8" x 150' Versatile Aluminum Spray Reel, 3000 psi, Stainless Swivel

Item #: C23012-310-5

MSRP: Price: $949.26

Price: with strikethrough $949.26

Retail Price:

Sale Price: Price $881.46

(You save $67.80 )

QTY:

Usually ships the same business day

Most orders over $299
ship for free | See Details

Have a Question?
ASK NATE

Get Expert Advice or

Call 888-654-8898

Get Expert Advice or

Call 888-654-8898

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

FIND MY PRODUCT

Related Items

Item Description

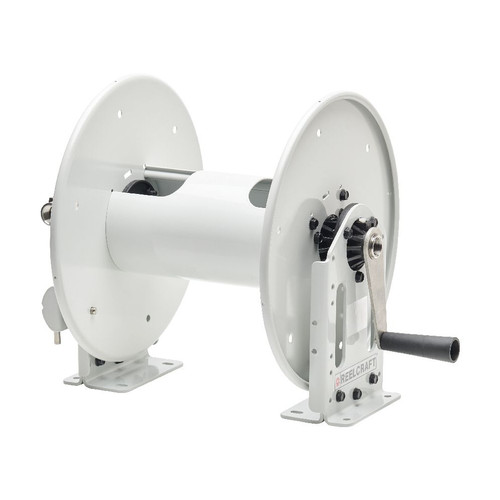

C23012 310 – Heavy Duty Aluminum Hand Crank Hose Reel

Features:

Aluminum construction is 50% lighter in weight than carbon steel and corrosion resistant.
Hardware includes a two-coat plating process that resists salt spray and acids.
3/4″ fluid path constructed of 316 stainless steel is designed to handle harsh chemicals. This model includes a stainless steel swivel rated to 3000 PSI.
Includes spring loaded latching mechanism and drag brake to control over spooling.
Innovative design allows for the handle or swivel to be easily swapped from one side to the other.
Drive type – hand crank rewind
Hose not included
Made in the USA

C23012-310 Parts List (4 Items) ▼

C23012-310 Parts Diagram

Item #	# Req.	Part Number	Description
1	1	S602026-2	Plated Carbon Steel Swivel FKM
2	1	S602979	Crank Arm and Hardware Kit
3	1	S602971-310	Latch Pin Kit
4	1	S602981-310	Upright, Hub & Shaft Kit

Specifications:

Weight	23 lbs
Series	20000
3/8" Hose Capacity	300'
1/2" Hose Capacity	200'
5/8" Hose Capacity	150'
3/4" Hose Capacity	125'
Pressure	3000 psi
Inlet	3/4" NPT(F)
Reel Outlet	3/4" NPT(F)
Hose Included	No
Max Temperature	150 °F
UPC	699567031772
Carton Dimensions	24" x 18" x 18"
Internal Fluid Path	Stainless Steel
Swivel Assembly	Stainless Steel
Swivel Seal	FKM

C23012 310 – Heavy Duty Aluminum Hand Crank Hose Reel

Features:

Aluminum construction is 50% lighter in weight than carbon steel and corrosion resistant.
Hardware includes a two-coat plating process that resists salt spray and acids.
3/4″ fluid path constructed of 316 stainless steel is designed to handle harsh chemicals. This model includes a stainless steel swivel rated to 3000 PSI.
Includes spring loaded latching mechanism and drag brake to control over spooling.
Innovative design allows for the handle or swivel to be easily swapped from one side to the other.
Drive type – hand crank rewind
Hose not included
Made in the USA

C23012-310 Parts List (4 Items) ▼

C23012-310 Parts Diagram

Item #	# Req.	Part Number	Description
1	1	S602026-2	Plated Carbon Steel Swivel FKM
2	1	S602979	Crank Arm and Hardware Kit
3	1	S602971-310	Latch Pin Kit
4	1	S602981-310	Upright, Hub & Shaft Kit

Specifications:

Weight	23 lbs
Series	20000
3/8" Hose Capacity	300'
1/2" Hose Capacity	200'
5/8" Hose Capacity	150'
3/4" Hose Capacity	125'
Pressure	3000 psi
Inlet	3/4" NPT(F)
Reel Outlet	3/4" NPT(F)
Hose Included	No
Max Temperature	150 °F
UPC	699567031772
Carton Dimensions	24" x 18" x 18"
Internal Fluid Path	Stainless Steel
Swivel Assembly	Stainless Steel
Swivel Seal	FKM
