Reelcraft L-3030-123-7Q - 12/3 x 30 ft. Compact Electric Cord Reel, 20A Quad Box
Reelcraft’s new Series 3000 cord reels are all-steel construction and ultra-compact for a wide range of bench mount or mobile applications with critical space requirements. These compact reels easily fit within a 1 ft. x 1 ft. space. The reels incorporate multiple slotted mounting holes to accommodate many configurations. An optional guide arm accessory is available for multiple adjustment positions of the cord. All steel components are individually powder coated to virtually eliminate corrosion. *UL listed*
*Reel is shipped in the top wind position. The reel image is shown in side wind position.

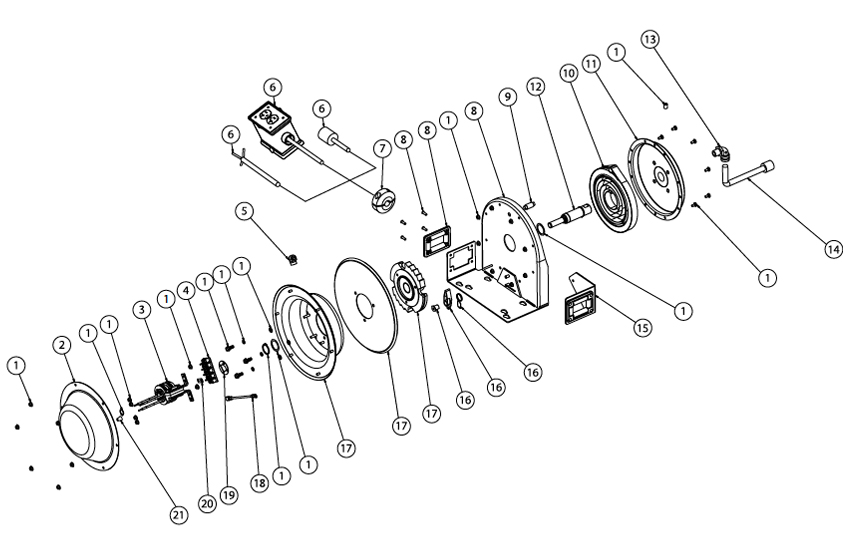

| Item # | # Req. | Part Number | Description |
|---|---|---|---|
| 1 | 1 | S602810 | Hardware Assembly |
| 2 | 1 | S263152 | Cover, Slip Ring |
| 3 | 1 | 602296 | Slip Ring and Brush Assembly |
| 4 | 1 | 600205 | Terminal Block |
| 5 | 1 | 260633 | Cord Clamp |
| 7 | 2 | 1-HR1004-A | Bumper Assembly |
| 8 | 1 | S602808 | Base and Spring Assembly |
| 9 | 1 | 261360 | Spring Case Stud |
| 10 | 1 | 400030 | Drive Spring Assembly |
| 11 | 1 | 400103 | Spring Case Assembly |
| 12 | 1 | 602348 | Main Shaft with Snap Ring |
| 13 | 1 | 261140-C | Connector 90 Degree |
| 14 | 1 | 260630 | Cord Inlet 5-15 SP |
| 15 | 1 | S602805 | Guide Arm Assembly w/Hardware |
| 16 | 1 | S602809 | Latch Pawl Assembly |
| 17 | 1 | S602811 | Sheave Assembly |
| 18 | 1 | 600283 | Cord Assembly (Grounding) |
| 19 | 1 | 261577 | Adapter Plate |
| 20 | 1 | 260609 | Connector |
| 21 | 3 | 260774 | Nut, Wire |
| 6 | 1 | S602813-30 | Cord and Outlet Assembly |
| Weight | 24.5 lbs |
| Series | L 3000 |
| Cord Ending | Quad Outlet Box |
| AWG | 12 |
| Cord/Cable Length | 30' |
| Volts | 125 |
| Amps | 20 |
| Conductors | 3 |
| Cord/Cable Included | Yes |
| Type | SJTO |
| UPC | 699567025313 |
| Weight | 24.5 lbs |
| Series | L 3000 |
| Cord Ending | Quad Outlet Box |
| AWG | 12 |
| Cord/Cable Length | 30' |
| Volts | 125 |
| Amps | 20 |
| Conductors | 3 |
| Cord/Cable Included | Yes |
| Type | SJTO |
| UPC | 699567025313 |
Reelcraft L-3030-123-7Q - 12/3 x 30 ft. Compact Electric Cord Reel, 20A Quad Box
Reelcraft’s new Series 3000 cord reels are all-steel construction and ultra-compact for a wide range of bench mount or mobile applications with critical space requirements. These compact reels easily fit within a 1 ft. x 1 ft. space. The reels incorporate multiple slotted mounting holes to accommodate many configurations. An optional guide arm accessory is available for multiple adjustment positions of the cord. All steel components are individually powder coated to virtually eliminate corrosion. *UL listed*
*Reel is shipped in the top wind position. The reel image is shown in side wind position.
| Item # | # Req. | Part Number | Description |
|---|---|---|---|
| 1 | 1 | S602810 | Hardware Assembly |
| 2 | 1 | S263152 | Cover, Slip Ring |
| 3 | 1 | 602296 | Slip Ring and Brush Assembly |
| 4 | 1 | 600205 | Terminal Block |
| 5 | 1 | 260633 | Cord Clamp |
| 7 | 2 | 1-HR1004-A | Bumper Assembly |
| 8 | 1 | S602808 | Base and Spring Assembly |
| 9 | 1 | 261360 | Spring Case Stud |
| 10 | 1 | 400030 | Drive Spring Assembly |
| 11 | 1 | 400103 | Spring Case Assembly |
| 12 | 1 | 602348 | Main Shaft with Snap Ring |
| 13 | 1 | 261140-C | Connector 90 Degree |
| 14 | 1 | 260630 | Cord Inlet 5-15 SP |
| 15 | 1 | S602805 | Guide Arm Assembly w/Hardware |
| 16 | 1 | S602809 | Latch Pawl Assembly |
| 17 | 1 | S602811 | Sheave Assembly |
| 18 | 1 | 600283 | Cord Assembly (Grounding) |
| 19 | 1 | 261577 | Adapter Plate |
| 20 | 1 | 260609 | Connector |
| 21 | 3 | 260774 | Nut, Wire |
| 6 | 1 | S602813-30 | Cord and Outlet Assembly |
| Weight | 24.5 lbs |
| Series | L 3000 |
| Cord Ending | Quad Outlet Box |
| AWG | 12 |
| Cord/Cable Length | 30' |
| Volts | 125 |
| Amps | 20 |
| Conductors | 3 |
| Cord/Cable Included | Yes |
| Type | SJTO |
| UPC | 699567025313 |
| Weight | 24.5 lbs |
| Series | L 3000 |
| Cord Ending | Quad Outlet Box |
| AWG | 12 |
| Cord/Cable Length | 30' |
| Volts | 125 |
| Amps | 20 |
| Conductors | 3 |
| Cord/Cable Included | Yes |
| Type | SJTO |
| UPC | 699567025313 |
