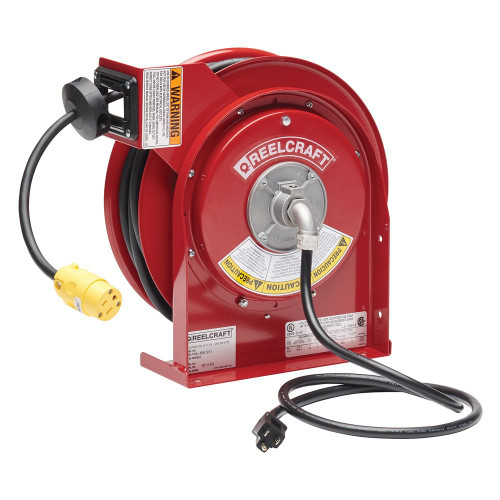

Reelcraft L-4545-123-3 - 12/3 x 45 ft. 15A, Single Outlet Electric Cord Reel
Reelcraft’s Series L 4000 NEMA 5-15R single receptacle power cord reel includes a 15 amp single receptacle with clamp style strain relief. The reel is supplied with a 4-5 foot pigtail that includes a NEMA 5-15P inlet straight blade plug. For indoor, non-weather tight applications only. *UL/CSA approved*
- 45 ft. 12/3 SJEOOW cord with single receptacle included
- Base plate and upright are constructed from 14 gauge steel; the guide arm is 13 gauge and the spool is 16 gauge steel
- A heavy duty collector ring assures highest conductivity
- The reliable speed latch allows for positive locking of the spool in two positions per rotation
- Individually powder-coated steel components provide maximum protection from premature corrosion
- Robotically welded steel base offers maximum strength and consistent quality
- Made in USA
*Reel is shipped in the top wind position. The reel image is shown in side wind position.
Weight | 27 lbs |
Series | L 4000 |
Cord Ending | Single Receptacle |
AWG | 12 |
Cord/Cable Length | 45' |
Volts | 125 |
Amps | 15 |
Conductors | 3 |
Cord/Cable Included | Yes |
Type | SJEOOW |
UPC | 699567000358 |
Carton Dimensions | 17.5" x 16" x 12" |
