Reelcraft L-7050-104-X - 10/4 x 50 ft. 20A, Flying Lead End Electric Cord Reel
Reelcraft Series L 7000 spring-driven power cord reel designed for indoor, non-weather tight applications. Features a robotically welded heavy gauge steel frame w/ four 1/2" diameter mounting holes for secure floor, wall, or ceiling installation. Maximum installation height of 16 ft. Includes 50 ft. of 10/4 SEOOW cord w/ flying lead end. UL/CSA approved.

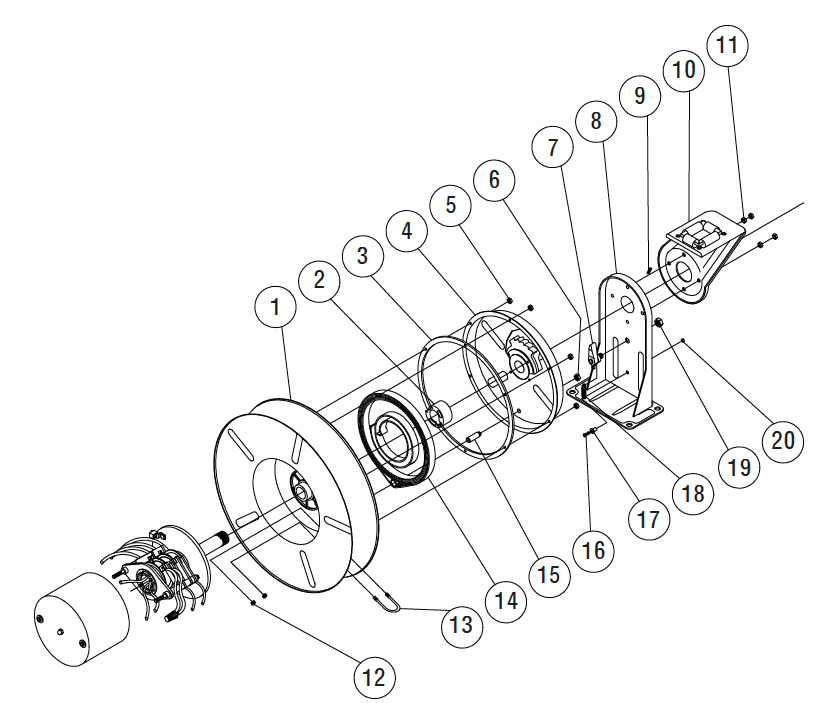

| Item # | # Req. | Part Number | Description |
|---|---|---|---|
| General Service Kits | |||
| 2 | 1 | S600621 | Arbor & Key Kit |
| 1 | • Spring Arbor | ||
| 1 | • Arbor Key | ||
| 3 | 1 | S603009 | Service Kit |
| 2 | • Retaining Ring (1-1/4" OD Shaft x .05" Thick) | ||
| 4 | 1 | S600017 | Guide Arm Kit |
| 1 | • Guide Arm Assembly | ||
| 4 | • Lock Nut 5/16-18 | ||
| 5 | 1 | S262323 | Conduit Box Kit |
| 1 | • Conduit Box | ||
| 1 | • Conduit Box Cover | ||
| 1 | • Cord Grip 1" NPT | ||
| 6 | 1 | S602299 | Latch Pawl Kit |
| 1 | • Latch Pawl Assembly | ||
| 1 | • Hex Flange Nut 1/2-20 | ||
| 1 | • Latch Spring | ||
| 1 | • Nyloc Nut 10-32 | ||
| 1 | • Shoulder Screw 10-32 2A Thread | ||
| 7 | 1 | S260067 | Latch Spring |
| Model-Specific Service Kits — L-7050-104-X | |||
| 1 | 1 | S260037 | Drive Spring Kit |
| 1 | • Drive Spring Assembly | ||
| 1 | • Springcase Gasket | ||
| 6 | • Nyloc Nut 10-32 | ||
| 8 | 1 | S3-117440 | U-Bolt Kit |
| 1 | • U-Bolt 1/2 1/4-20 | ||
| 1 | • Lock Nut 1/4-20 Hex Flange | ||
| - | 1 | S1-HR1004-A | Bumper Stop |
| - | 1 | S262325-50 | Outlet Cord |
| - | 1 | S262326 | Inlet Cord |
| Weight | 65 lbs |
| Series | L 7000 |
| Cord Ending | Flying Lead |
| AWG | 10 |
| Cord/Cable Length | 50' |
| Volts | 600 |
| Amps | 20 |
| Conductors | 4 |
| Cord/Cable Included | Yes |
| Type | SEOOW |
| UPC | 699567007418 |
| Carton Dimensions | 21" x 20" x 20.5" |
| Weight | 65 lbs |
| Series | L 7000 |
| Cord Ending | Flying Lead |
| AWG | 10 |
| Cord/Cable Length | 50' |
| Volts | 600 |
| Amps | 20 |
| Conductors | 4 |
| Cord/Cable Included | Yes |
| Type | SEOOW |
| UPC | 699567007418 |
| Carton Dimensions | 21" x 20" x 20.5" |
Reelcraft L-7050-104-X - 10/4 x 50 ft. 20A, Flying Lead End Electric Cord Reel
Reelcraft Series L 7000 spring-driven power cord reel designed for indoor, non-weather tight applications. Features a robotically welded heavy gauge steel frame w/ four 1/2" diameter mounting holes for secure floor, wall, or ceiling installation. Maximum installation height of 16 ft. Includes 50 ft. of 10/4 SEOOW cord w/ flying lead end. UL/CSA approved.
| Item # | # Req. | Part Number | Description |
|---|---|---|---|
| General Service Kits | |||
| 2 | 1 | S600621 | Arbor & Key Kit |
| 1 | • Spring Arbor | ||
| 1 | • Arbor Key | ||
| 3 | 1 | S603009 | Service Kit |
| 2 | • Retaining Ring (1-1/4" OD Shaft x .05" Thick) | ||
| 4 | 1 | S600017 | Guide Arm Kit |
| 1 | • Guide Arm Assembly | ||
| 4 | • Lock Nut 5/16-18 | ||
| 5 | 1 | S262323 | Conduit Box Kit |
| 1 | • Conduit Box | ||
| 1 | • Conduit Box Cover | ||
| 1 | • Cord Grip 1" NPT | ||
| 6 | 1 | S602299 | Latch Pawl Kit |
| 1 | • Latch Pawl Assembly | ||
| 1 | • Hex Flange Nut 1/2-20 | ||
| 1 | • Latch Spring | ||
| 1 | • Nyloc Nut 10-32 | ||
| 1 | • Shoulder Screw 10-32 2A Thread | ||
| 7 | 1 | S260067 | Latch Spring |
| Model-Specific Service Kits — L-7050-104-X | |||
| 1 | 1 | S260037 | Drive Spring Kit |
| 1 | • Drive Spring Assembly | ||
| 1 | • Springcase Gasket | ||
| 6 | • Nyloc Nut 10-32 | ||
| 8 | 1 | S3-117440 | U-Bolt Kit |
| 1 | • U-Bolt 1/2 1/4-20 | ||
| 1 | • Lock Nut 1/4-20 Hex Flange | ||
| - | 1 | S1-HR1004-A | Bumper Stop |
| - | 1 | S262325-50 | Outlet Cord |
| - | 1 | S262326 | Inlet Cord |
| Weight | 65 lbs |
| Series | L 7000 |
| Cord Ending | Flying Lead |
| AWG | 10 |
| Cord/Cable Length | 50' |
| Volts | 600 |
| Amps | 20 |
| Conductors | 4 |
| Cord/Cable Included | Yes |
| Type | SEOOW |
| UPC | 699567007418 |
| Carton Dimensions | 21" x 20" x 20.5" |
| Weight | 65 lbs |
| Series | L 7000 |
| Cord Ending | Flying Lead |
| AWG | 10 |
| Cord/Cable Length | 50' |
| Volts | 600 |
| Amps | 20 |
| Conductors | 4 |
| Cord/Cable Included | Yes |
| Type | SEOOW |
| UPC | 699567007418 |
| Carton Dimensions | 21" x 20" x 20.5" |
