Reelcraft L-NM450-123-X - NEMA4 Outdoor Cord Reel, 12/3, 18 amp 50 ft. Cord
Reelcraft's Series L NM400 cord reels are NEMA 4 rated and designed for indoor and outdoor use. The guide arm is adjustable every 5° over a 270° arc allowing for the exact configuration to suit a wide range of applications. The containerized drive spring allows for safer, easier handling during maintenance. The heavy-duty cast aluminum design and powder coat finish combine to produce a rugged, corrosion-resistant product. *UL/CSA approved*

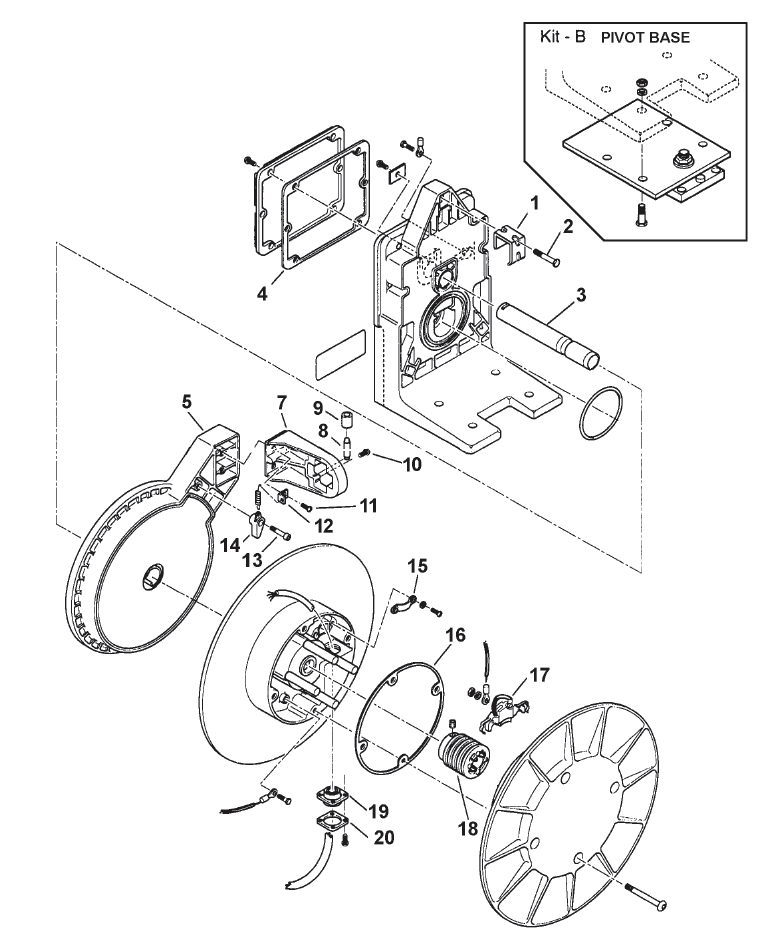

| Item # | # Req. | Part Number | Description |
|---|---|---|---|
| 3 | 1 | 263095 | Main shaft |
| 4 | 1 | 263096 | Junction box gasket |
| 5 | 1 | 263099 | Spring case assembly |
| 12 | 1 | 263101 | Spring clip |
| 13 | 1 | 263102 | Screw shoulder M8x10x16 |
| 14 | 1 | 263103 | Ratchet pawl |
| 15 | 1 | 263104 | Cable clamp |
| 16 | 1 | 263105 | Drum gasket |
| 17 | 4 | 263106 | Copper brush assembly |
| 18 | 1 | 263107 | Collector ring subassembly |
| 19 | 1 | 263112 | Cable seal |
| 20 | 1 | 263113 | Seal cover |
| Kit A | 1 | 263110 | Clamp kit - 3 sets, stainless steel |
| Kit B | 1 | 263109 | Pivot base (optional) |
| Kit C | 1 | 263111 | Roller guide kit |
| Weight | 50 lbs |
| Series | L NM400 |
| Cord Ending | Flying Lead |
| AWG | 12 |
| Cord/Cable Length | 50' |
| Volts | 600 |
| Amps | 18 |
| Conductors | 3 |
| Cord/Cable Included | Yes |
| Type | SOW |
| UPC | 699567022879 |
| Weight | 50 lbs |
| Series | L NM400 |
| Cord Ending | Flying Lead |
| AWG | 12 |
| Cord/Cable Length | 50' |
| Volts | 600 |
| Amps | 18 |
| Conductors | 3 |
| Cord/Cable Included | Yes |
| Type | SOW |
| UPC | 699567022879 |
