Reelcraft THA7600-OMP 3/8 x 30ft, 3000 PSI, Twin Hydraulic -No Hose

The hydraulic series hose reel incorporates contemporary engineering and manufacturing techniques to give trouble free performance. Used for medium pressure hydraulic applications, Series TH hose reels are ideal for operating hydraulic cylinders, tools and equipment. Reels are all steel construction and compact for applications with critical space requirements.

• Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion.
• Long life drive spring – Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.
• Constant tension or pos-i-latch spool mechanism
• Compact design for critical space requirements

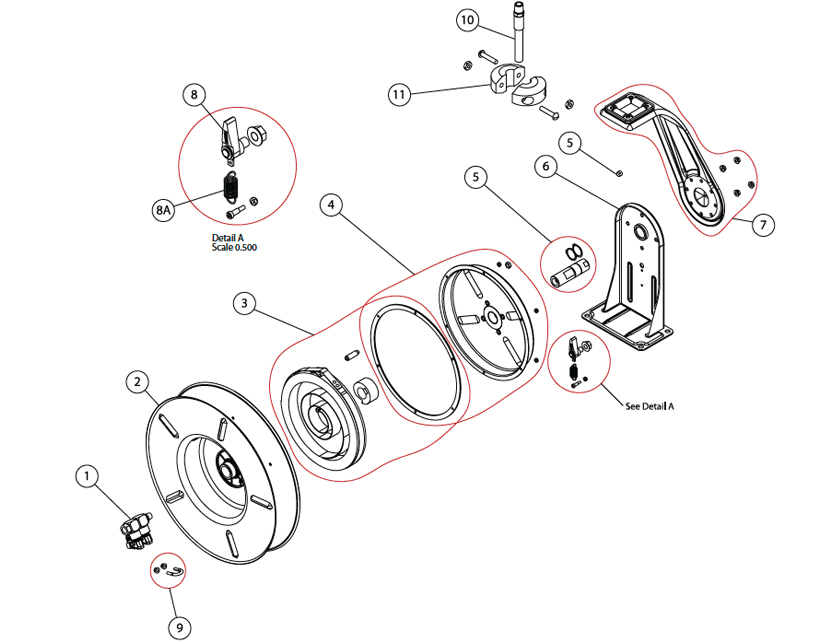

*Reel is shipped in the top wind position. The reel image is shown in side wind position.

Specifications:
