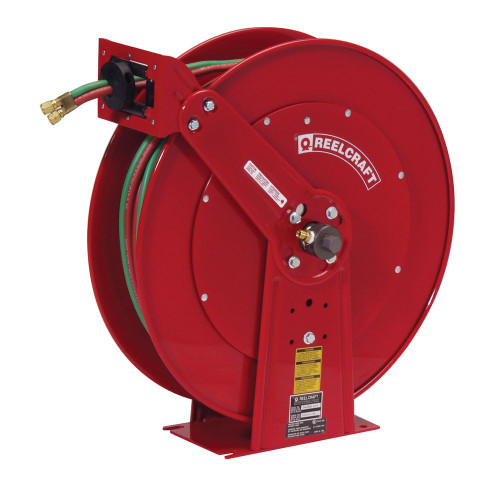

Reelcraft TW86050 OLPT - 3/8" x 50 ft. Heavy Duty Welding Hose Reel T-Grade
Reelcraft’s Series TW spring retractable gas welding hose reels are designed to improve safety in the work area with an increase in productivity and efficiency. The durable baked-on red powder-coated finish provides maximum corrosion resistance. The reel frame, spool, and drum are fabricated of heavy-gauge steel.
*Reel is shipped in the top wind position. The reel image is shown in side wind position.
| Item # | # Req. | Part Number | Description |
|---|---|---|---|
| --- | 1 | 600654 | Hardware Kit |
| 1 | 1 | S600534-1 | Oxygen Swivel Assembly |
| 3 | 2 | 261299 | Guide Arm |
| 4 | 1 | S600645-2 | Spring and Case Assembly |
| 7 | 1 | S600642 | Roller Bracket Assembly |
| 14 | 1 | S600651 | Flange w/Bearing and Nut-Sert Assembly |
| 15 | 1 | 600680-1 | Ratchet, Flow Casting |
| 16 | 1 | 600649 | Sheave Assembly |
| 19 | 1 | 600641 | Base and Upright Assembly |
| 20 | 1 | S393-2 | Shoulder Screw |
| 20 | 1 | 261351 | Latch Spring Stud |
| 21 | 1 | S260067 | Latch Spring |
| 22 | 1 | S600675 | Latch Pawl Assembly |
| 23 | 1 | S600644 | Bearing and Flange Assembly |
| 24 | 1 | S600535-1 | Fuel Gas Swivel Assembly |
| 10 | 1 | 601040-50 | Hose Assembly |
| 11 | 1 | 600521 | Bumper Stop Assembly |
| Weight | 90 lbs |
| Series | 80000 |
| Hose I.D. | 3/8" |
| Hose O.D. | 0.625" |
| Hose Length | 50' |
| Pressure | 200 psi |
| Hose End | 9/16 – 18(F) |
| Inlet | 9/16 – 18(M) |
| Reel Outlet | 9/16 – 18(M) |
| Hose Included | Yes |
| Max Temperature | 150 °F |
| UPC | 699567024491 |
| Carton Dimensions | 28" x 10" x 27" |
| Internal Fluid Path | Aluminum |
| Swivel Assembly | Aluminum / Brass |
| Swivel Seal | Buna |
| Weight | 90 lbs |
| Series | 80000 |
| Hose I.D. | 3/8" |
| Hose O.D. | 0.625" |
| Hose Length | 50' |
| Pressure | 200 psi |
| Hose End | 9/16 – 18(F) |
| Inlet | 9/16 – 18(M) |
| Reel Outlet | 9/16 – 18(M) |
| Hose Included | Yes |
| Max Temperature | 150 °F |
| UPC | 699567024491 |
| Carton Dimensions | 28" x 10" x 27" |
| Internal Fluid Path | Aluminum |
| Swivel Assembly | Aluminum / Brass |
| Swivel Seal | Buna |
Reelcraft TW86050 OLPT - 3/8" x 50 ft. Heavy Duty Welding Hose Reel T-Grade
Reelcraft’s Series TW spring retractable gas welding hose reels are designed to improve safety in the work area with an increase in productivity and efficiency. The durable baked-on red powder-coated finish provides maximum corrosion resistance. The reel frame, spool, and drum are fabricated of heavy-gauge steel.
*Reel is shipped in the top wind position. The reel image is shown in side wind position.
