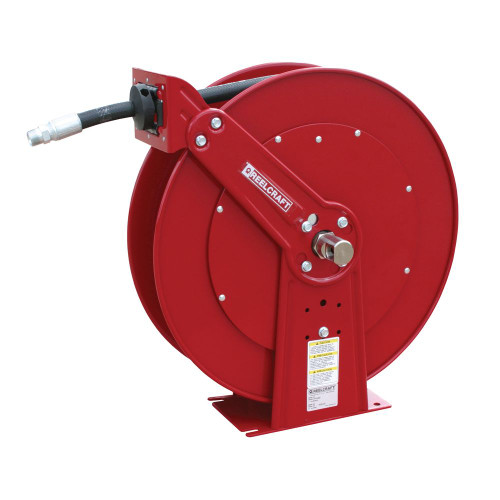

Reelcraft UR83050 OLB – 3/4 in. x 50 ft. Heavy Duty DEF Hose Reel
Reelcraft introduces its DEF Dispensing line of spring retractable hose reels. Designed to aide in the dispensing of Diesel Emissions Fluid (DEF) for late model diesel engines, these reels are an integral part in emerging DEF service stations in marinas, truck stops and garages. This sort of dispensing equipment is going to become more prevalent across the United States as the push for greener emissions standards escalates. Reelcraft is offering a solution.
Features:
- Reinforced steel – The steel guide arm and dual pedestal base are stamped with ribs and gussets and robotically welded to insure maximum strength and lightest possible weight. The unitized cast fluid path and ratchet reduce wearable parts and ease of assembly.
- Full flow stress free swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life.
- Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion.
Specifications:
Weight | 93 lbs |
Series | 80000 |
Hose I.D. | 3/4" |
Hose O.D. | 1.130" |
Hose Length | 50' |
Pressure | 300 psi |
Hose End | 3/4" NPT(M) |
Inlet | 3/4" NPT(F) |
Reel Outlet | 3/4" NPT(F) |
Hose Included | Yes |
Max Temperature | 150 °F |
UPC | 699567024804 |
