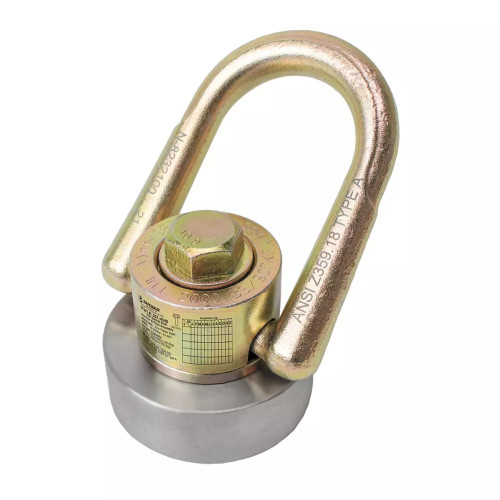

Safewaze 021-4059 5K Swivel Steel Anchor & Puck Assembly
The 5K Swivel Anchor & Puck Assembly is a heavy duty all-steel anchor solution used in temporary or permanent installations. Built with corrosion-resistant steel and equipped with a non-plated weld on puck plus 1/2" fastener.
Features:
- 180° / 360° rotating connection point for increased mobility Heavy duty, corrosion-resistant
- Easy welding installation Temporary or permanent
Specifications:
Materials | Zinc-plated steel, steel puck |
Weight | 2.7 lbs. (1.2 kg) |
Dimensions | 3.3" x 2.3" |
Minimum Breaking Strength | 5,000 lbs. |
ANSI Weight Capacity | 130-310 lbs. (59-141 kg) |
OSHA Weight Capacity | Up to 420 lbs. (191 kg) |
ANSI Standards | Z359.18-2017 Type A |
OSHA Standards | 1926.502, 1910.140, 1910.66 |
