Safewaze 023-12162 27' to 34' Belmont Safety Hatch System with Round Brackets
The 27' to 34' Belmont Safety Hatch System with Round Brackets is a complete solution for safe rooftop access when using a hatch from a fixed ladder. Open, close and secure the roof hatch from the safety of the ground, leaving hands free for climbing. An innovative built-in pole extends at top to ensure smooth transitions between the ladder and roof.
Features:
- System mounts directly to ladder for stability Ground level operation to open, close and secure hatch Safe transitions with built-in extension pole Manually operated drive unit with simple crank Installs on systems from 27' to 34'

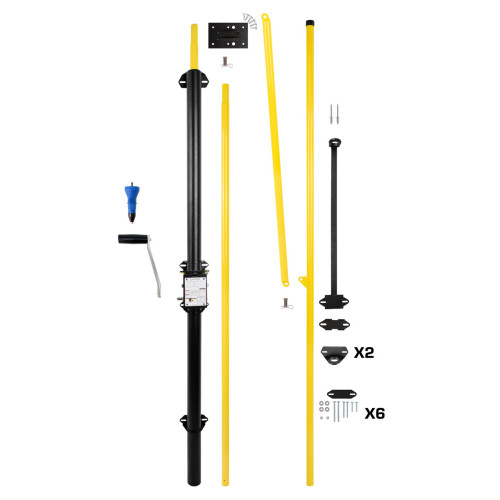

- For use on hatches from 30" square to 36" square Assembly required, padlock not included Includes all required components and fasteners:
- - (10) Brackets for side mounted installation on round tubing 1 3/4" diameter
- - (3) Lifting tube extensions
- - (6) Intermediate guide brackets
- - (1) Drill bit rivet adapter
Specifications:
Materials | Powder coated steel, zinc plated steel fasteners |
Weight | 51.1 lbs. (23.2 kg) |
System Length | 27' to 34' (8.2 m to 10.4 m) |
System Capacity | 600 lbs. (272.2 kg) |
ANSI Standards | N/A |
OSHA Standards | N/A |
