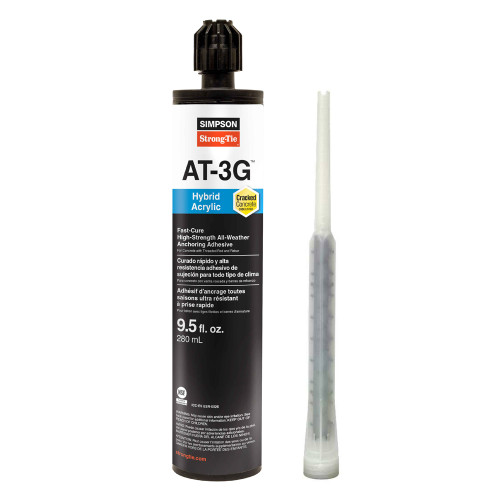

Simpson Strong-Tie AT3G10 - High-Strength Hybrid Acrylic Adhesive, 10oz - 6 Tubes + Dispensing Tool

Simpson Strong-Tie AT3G10 - High-Strength Hybrid Acrylic Adhesive, 10oz - 6 Tubes + Dispensing Tool

Item #: AT3G10-KIT

Price: $164.99

Most orders over $299
ship for free | See Details

Have a Question?
ASK NATE

Get Expert Advice or

Call 888-654-8898

Get Expert Advice or

Call 888-654-8898

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

FIND MY PRODUCT

Essential Accessories

Item Description

Simpson Strong-Tie AT3G10 - High-Strength Hybrid Acrylic Adhesive, 10oz - 6 Tubes + Dispensing Tool

AT-3G is a hybrid, acrylic-based adhesive for anchoring threaded rod and rebar into cracked and uncracked concrete. Ideal for cold weather and wet concrete applications, AT-3G dispenses easily and offers a fast curing time for same-day bolt up. It can be specified for a wide range of in-service temperatures, and maintains its strong bond strength in extreme environments for ultimate design and jobsite flexibility. Tested and code compliant with the IBC and IRC, AT-3G hybrid adhesive is easy to install with the conventional blow-brush-blow hole cleaning method.

Features:

Excellent for use in cold weather conditions or applications where fast cure is required
Recognized per ICC-ES AC308 for threaded rod and rebar anchoring, along with post-installed rebar development and splice length design provisions
Conventional blow-brush-blow hole cleaning technique using a wire brush — no power brushing required
Base material installation temperatures down to 0°F (-18°C)
Use in grout-filled CMU construction
Use of a vacuum in lieu of compressed air for hole cleaning
Installation into oversized holes
Installation in holes drilled with diamond core bits

Mix Ratio/Type	10:1 hybrid-acrylic
Mixed Color	Gray
Base Materials	Concrete — cracked and uncracked
Base Material Conditions	Dry, water-saturated, water-filled holes
Anchor Type	Threaded rod or rebar
Substrate Installation Temperature	23°F (-5°C) to 104°F (40°C)
In-Service Temperature Range	-40°F (-40°C) to 320°F (160°C)
Storage Temperature	41°F (5°C) and 77°F (25°C)
Shelf Life	18 months
Volatile Organic Compound (VOC)	41 g/L

Applications:

Threaded rod anchor and rebar dowel installations in cracked and uncracked concrete under a wide variety of environmental installation and use conditions
Installation in downward, horizontal and upwardly inclined (including overhead) orientations
Installation down to 0 F (-18 C)
Qualified for use in structures assigned to Seismic Design Categories A through F

Specifications

Simpson Strong-Tie AT3G10 - High-Strength Hybrid Acrylic Adhesive, 10oz - 6 Tubes + Dispensing Tool

Features:

Excellent for use in cold weather conditions or applications where fast cure is required
Recognized per ICC-ES AC308 for threaded rod and rebar anchoring, along with post-installed rebar development and splice length design provisions
Conventional blow-brush-blow hole cleaning technique using a wire brush — no power brushing required
Base material installation temperatures down to 0°F (-18°C)
Use in grout-filled CMU construction
Use of a vacuum in lieu of compressed air for hole cleaning
Installation into oversized holes
Installation in holes drilled with diamond core bits

Mix Ratio/Type	10:1 hybrid-acrylic
Mixed Color	Gray
Base Materials	Concrete — cracked and uncracked
Base Material Conditions	Dry, water-saturated, water-filled holes
Anchor Type	Threaded rod or rebar
Substrate Installation Temperature	23°F (-5°C) to 104°F (40°C)
In-Service Temperature Range	-40°F (-40°C) to 320°F (160°C)
Storage Temperature	41°F (5°C) and 77°F (25°C)
Shelf Life	18 months
Volatile Organic Compound (VOC)	41 g/L

Applications:

Threaded rod anchor and rebar dowel installations in cracked and uncracked concrete under a wide variety of environmental installation and use conditions
Installation in downward, horizontal and upwardly inclined (including overhead) orientations
Installation down to 0 F (-18 C)
Qualified for use in structures assigned to Seismic Design Categories A through F
