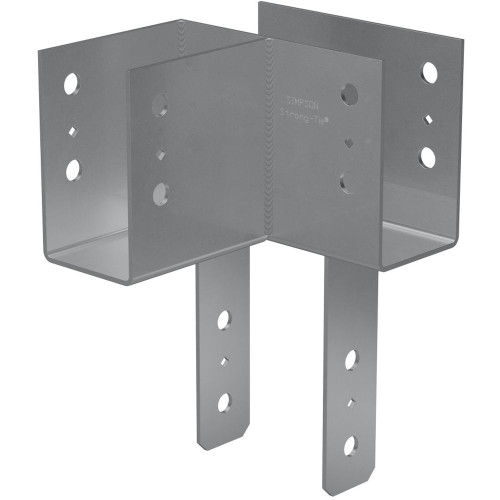

Simpson Strong-Tie ECCLL464 - 4X Beam, 6X Post, 4X Beam L-Shape Lf
Simpson Strong-Tie column caps come in a variety of sizes to accommodate any project, generally eliminating the need for additional brackets or braces. The ECCL is designed to provide strong column-to-beam connections in end-of-beam applications when two beams intersect in an “L” formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection. End column caps are sized to the specific plan details or needs to accommodate the many combinations of beam and post sizes.
Features
- Assembled with certified welds for confidence in strength and loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening
- Left direction; order ECCLR for right direction
- Nominal member sizes: 4x main beam, 6x post, 4x side beam
- Made from 7-gauge steel
- Simpson Strong-Tie gray paint finish
Specifications
| Product Type | Column Cap |
| Gauge | 7 |
| Finish | Simpson Strong-Tie Gray Paint |
| Color | Gray |
| Height | 15.171" |
| Width | 8.5" |
| Depth | 9.967" |
| Member Size | 4x main beam, 6x post, 4x side beam |
| Packaging Quantity | 1 |
| Install With | Install with 5/8-in. diameter bolts |
