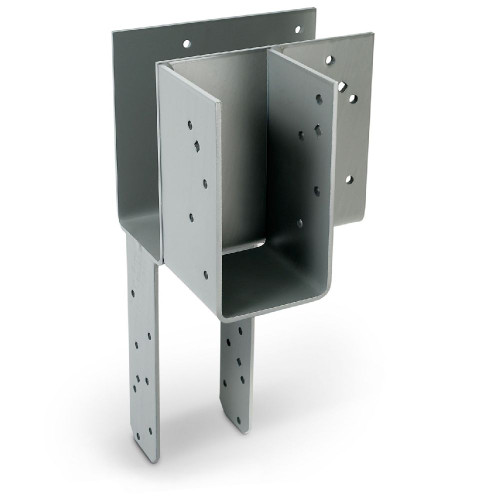

Simpson Strong-Tie ECCLRQ464HDG - L-Shape End Column Cap for 4x Beams, 6x Post w/ SDS Screws, Skewed Right
The Simpson Strong-Tie ECCLQ is designed to provide strong column-beam connections in end-of-beam applications when two beams intersect in an “L” formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection. The ECCLQ uses Strong-Drive SDS Heavy-Duty Connector screws to provide faster installation and a lower profile than standard through bolts. The ECCLQ is available in left- or right-side beam orientations.
Features
- Screws are configured to provide high uplift design values
- Certified welds for confidence in strength and loading
- Diamond holes to provide temporary fastening
- Right direction; order ECCLLQ model for left direction
- Nominal member sizes: 4x main beam, 6x post, 4x side beam
- Made from 7-gauge steel
- Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
Specifications
| Product Type | Column Cap |
| Gauge | 7 |
| Finish | Hot-Dip Galvanized |
| Member Size | 4x main beam, 6x post, 4x side beam |
| Packaging Quantity | 1 |
| Install With | Install with 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (included) |
