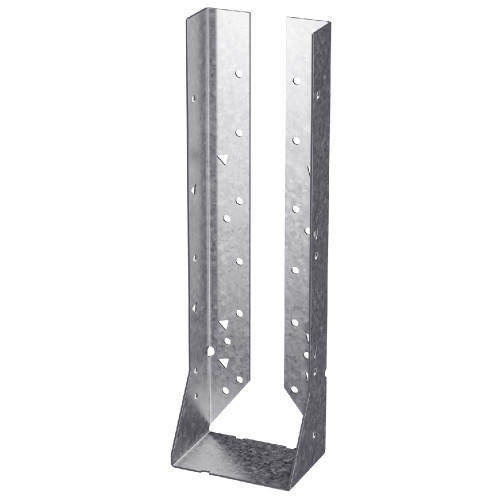

Simpson Strong-Tie HGUS2.75/12 - Face Mount Hanger
The HGUS is an extra-heavy-capacity hanger for applications requiring girder support. This girder hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. Value-engineered, the HGUS is designed to carry high loads for an economical price.
Key Features
- Can be installed after the beam is secured in place
- HGUS-series hangers are tested, load rated and code compliant
Finish
- Galvanized
Installation
- Use all specified fasteners; see General Notes.
- Joist nails must be driven at an angle through the joist or truss into the header to achieve the table loads.
- Not designed for welded or nailer applications.
- Do not use double-shear hangers with I-joists.
- With 3x carrying members: when 0.162" x 3 1/2" nails are specified, use 0.162" x 2 1/2" nails into the header and 0.162" x 3 1/2" nails into the joist with no load reduction. When 0.148" x 3" nails are specified, use 0.148" x 2 1/2" nails into the header and 0.148" x 3" nails into the joist with no load reduction.
- With 2x carrying members: when 0.162" x 3 1/2" nails are specified, use 0.148" x 1 1/2" nails into the header and 0.148" x 3" nails into the joist and reduce the load to 0.64 of the table values. When 0.148" x 3" nails are specified, use 0.148" x 1 1/2" nails into the header and 0.148" x 3" nails into the joist and reduce the load to 0.77 of the table values. See Fastener Design Information.
Specifications
Simpson Strong-Tie HGUS2.75/12 - Face Mount Hanger
The HGUS is an extra-heavy-capacity hanger for applications requiring girder support. This girder hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. Value-engineered, the HGUS is designed to carry high loads for an economical price.
Key Features
- Can be installed after the beam is secured in place
- HGUS-series hangers are tested, load rated and code compliant
Finish
- Galvanized
Installation
- Use all specified fasteners; see General Notes.
- Joist nails must be driven at an angle through the joist or truss into the header to achieve the table loads.
- Not designed for welded or nailer applications.
- Do not use double-shear hangers with I-joists.
- With 3x carrying members: when 0.162" x 3 1/2" nails are specified, use 0.162" x 2 1/2" nails into the header and 0.162" x 3 1/2" nails into the joist with no load reduction. When 0.148" x 3" nails are specified, use 0.148" x 2 1/2" nails into the header and 0.148" x 3" nails into the joist with no load reduction.
- With 2x carrying members: when 0.162" x 3 1/2" nails are specified, use 0.148" x 1 1/2" nails into the header and 0.148" x 3" nails into the joist and reduce the load to 0.64 of the table values. When 0.148" x 3" nails are specified, use 0.148" x 1 1/2" nails into the header and 0.148" x 3" nails into the joist and reduce the load to 0.77 of the table values. See Fastener Design Information.
