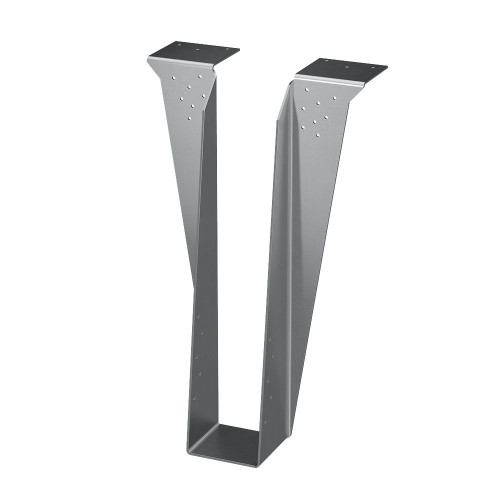

Simpson Strong-Tie HIT324 - 2-1/2" x 24 I-Joist Hanger

Simpson Strong-Tie HIT324 - 2-1/2" x 24 I-Joist Hanger

Simpson Strong-Tie HIT324 - 2-1/2" x 24 I-Joist Hanger

Item #: HIT324

Price: $48.31

Most orders over $299
ship for free | See Details

Have a Question?
ASK NATE

Get Expert Advice or

Call 888-654-8898

Get Expert Advice or

Call 888-654-8898

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

FIND MY PRODUCT

Essential Accessories

Item Description
Simpson Strong-Tie HIT324 - 2-1/2" x 24 I-Joist Hanger
The HIT is designed for standard 90° connections of I-joists to headers. This heavy top-flange hanger features positive-angle nailing (PAN), specifically created for I-joists to minimize splitting. The HIT also features extra triangle holes to allow higher uplift loads.
Key Features
- Time-saving PAN nailing
- Features two face nails to allow for a higher uplift
- Cost-effective solution for standard 90º connections in comparison to welded hangers
Finish
- Galvanized
Installation
- Use all specified fasteners. Verify that the header can take the required fasteners specified in the table.
- See product-specific installation drawings.
- Closed PAN nail holes may be used for increased uplift capacity. See Optional Nailing for Increased Uplift table.
- For sloped joists up to 1/4:12, there’s no reduction; from 1/4:12 up to 1/2:12, tests show a 10% reduction in ultimate hanger strength. Local crushing of the bottom flange or excessive deflection may be limiting; check with joist manufacturer for specific limitations on bearing of this type.
Allowable Loads
- Locations are provided for optional nails if additional uplift is needed. Optional uplift nailing requires the addition of properly-secured web stiffeners. See the load tables for minimum required fasteners and allowable uplift loads.
- For attaching to multi-ply headers, refer to technical bulletin Top-Flange Hanger Reductions for Multiple-Ply Headers (T-C-MPLYHEADR).
Options
- Because these hangers are fully die-formed, they cannot be modified. However, these models will normally accommodate a skew of up to 5°.
Specifications
Simpson Strong-Tie HIT324 - 2-1/2" x 24 I-Joist Hanger
The HIT is designed for standard 90° connections of I-joists to headers. This heavy top-flange hanger features positive-angle nailing (PAN), specifically created for I-joists to minimize splitting. The HIT also features extra triangle holes to allow higher uplift loads.
Key Features
- Time-saving PAN nailing
- Features two face nails to allow for a higher uplift
- Cost-effective solution for standard 90º connections in comparison to welded hangers
Finish
- Galvanized
Installation
- Use all specified fasteners. Verify that the header can take the required fasteners specified in the table.
- See product-specific installation drawings.
- Closed PAN nail holes may be used for increased uplift capacity. See Optional Nailing for Increased Uplift table.
- For sloped joists up to 1/4:12, there’s no reduction; from 1/4:12 up to 1/2:12, tests show a 10% reduction in ultimate hanger strength. Local crushing of the bottom flange or excessive deflection may be limiting; check with joist manufacturer for specific limitations on bearing of this type.
Allowable Loads
- Locations are provided for optional nails if additional uplift is needed. Optional uplift nailing requires the addition of properly-secured web stiffeners. See the load tables for minimum required fasteners and allowable uplift loads.
- For attaching to multi-ply headers, refer to technical bulletin Top-Flange Hanger Reductions for Multiple-Ply Headers (T-C-MPLYHEADR).
Options
- Because these hangers are fully die-formed, they cannot be modified. However, these models will normally accommodate a skew of up to 5°.
