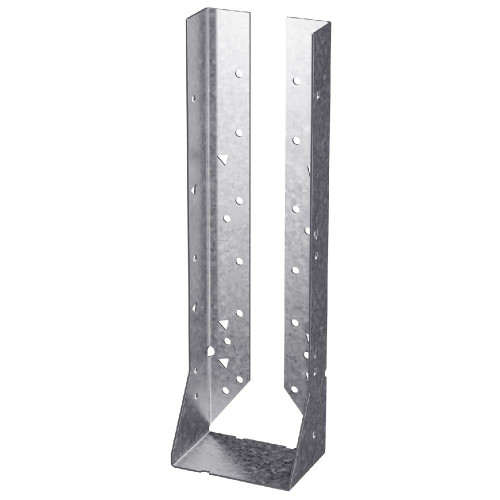

Simpson Strong-Tie HUC3514-2 - 2-5/16" x 14 Double Face Mount Hanger Cncl Flng

Simpson Strong-Tie HUC3514-2 - 2-5/16" x 14 Double Face Mount Hanger Cncl Flng

Simpson Strong-Tie HUC3514-2 - 2-5/16" x 14 Double Face Mount Hanger Cncl Flng

Item #: HUC3514-2

Price: $53.83

Most orders over $299
ship for free | See Details

Have a Question?
ASK NATE

Get Expert Advice or

Call 888-654-8898

Get Expert Advice or

Call 888-654-8898

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

FIND MY PRODUCT

Essential Accessories

Item Description
Simpson Strong-Tie HUC3514-2 - 2-5/16" x 14 Double Face Mount Hanger Cncl Flng
The HUC is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges providing cleaner visible lines in exposed conditions. Some models of this heavy-duty hanger can be special ordered with a skewable seat and a seat that slopes as far as up to 45°.
Key Features
- Extra optional triangle holes for additional load
- HUC-series hangers are tested, load rated and code compliant
Finish
- Galvanized
Installation
- Use all specified fasteners; see General Notes.
- Can be installed filling round holes only, or filling round and triangle holes for maximum values.
- Joists sloped up to 1/4:12 achieve table loads.
- Can be welded to a steel member. Allowable loads are the lesser of the values in the hanger tables or the weld capacity — refer to technical bulletin HU/HUC Welded onto Steel Members (T-C-HUHUC-W).
- When nailing into solid sawn carrying member's end grain, the allowable load is adjusted by a factor of 0.67.
Specifications
Simpson Strong-Tie HUC3514-2 - 2-5/16" x 14 Double Face Mount Hanger Cncl Flng
The HUC is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges providing cleaner visible lines in exposed conditions. Some models of this heavy-duty hanger can be special ordered with a skewable seat and a seat that slopes as far as up to 45°.
Key Features
- Extra optional triangle holes for additional load
- HUC-series hangers are tested, load rated and code compliant
Finish
- Galvanized
Installation
- Use all specified fasteners; see General Notes.
- Can be installed filling round holes only, or filling round and triangle holes for maximum values.
- Joists sloped up to 1/4:12 achieve table loads.
- Can be welded to a steel member. Allowable loads are the lesser of the values in the hanger tables or the weld capacity — refer to technical bulletin HU/HUC Welded onto Steel Members (T-C-HUHUC-W).
- When nailing into solid sawn carrying member's end grain, the allowable load is adjusted by a factor of 0.67.
