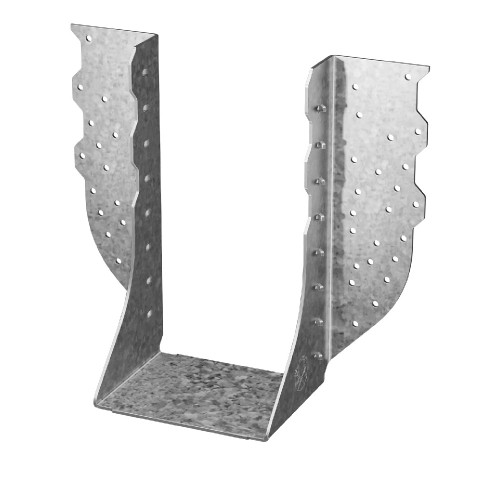

Simpson Strong-Tie MIU3.12/9 - Galvanized Face-Mount Joist Hanger for 3" x 9-1/2" Engineered Wood
The MIU hanger is designed for commercial, high-load and double I-joist applications without requiring web stiffeners. The MIU features positive-angle nailing (PAN) which minimizes splitting of the flanges while permitting time-saving nailing from a better angle. This face-mount hanger features speed prongs to temporarily position and secure the connector for easier and faster installation.
Key Features
Material
Finish
Installation
Uplift Loads
Options
MIU hangers cannot be modified. However, these models will normally accommodate a skew of up to 5°. For sloped joists up to 1/4:12 there is no reduction; between 1/4:12 and up to 1/2:12, tests show a 10% reduction in ultimate hanger strength. Local crushing of the bottom flange or excessive deflection may be limiting; check with joist manufacturer for specific limitations on bearing of this type.
Simpson Strong-Tie MIU3.12/9 - Galvanized Face-Mount Joist Hanger for 3" x 9-1/2" Engineered Wood
The MIU hanger is designed for commercial, high-load and double I-joist applications without requiring web stiffeners. The MIU features positive-angle nailing (PAN) which minimizes splitting of the flanges while permitting time-saving nailing from a better angle. This face-mount hanger features speed prongs to temporarily position and secure the connector for easier and faster installation.
Key Features
Material
Finish
Installation
Uplift Loads
Options
MIU hangers cannot be modified. However, these models will normally accommodate a skew of up to 5°. For sloped joists up to 1/4:12 there is no reduction; between 1/4:12 and up to 1/2:12, tests show a 10% reduction in ultimate hanger strength. Local crushing of the bottom flange or excessive deflection may be limiting; check with joist manufacturer for specific limitations on bearing of this type.
