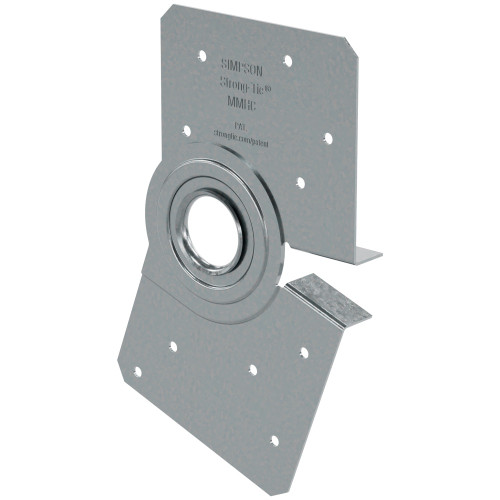

Simpson Strong-Tie MMHC - Hinged Roof Connector

The innovative Simpson Strong-Tie MMHC hinged roof connector makes it easy to build a stick-frame roof in the factory that can fold flat during shipping. This connector has been tested and load rated in multiple directions. It can be installed on one or both sides of the roof rafter assembly.

Features

Innovative hinge rotates easily from open position to folded
The offset nail pattern allows for installation on both sides
Connector tabs make it intuitive to position before nailing
Nails in place for easy installation; no bolts required
No measuring or predrilling saves installers time
Minimum 2x6 roof rafter and ceiling joist; minimum 2x4 knee wall stud
Made from 18-gauge steel
Galvanized (G90) for corrosion resistance

Specifications

Product Type	Rafter Tie
Gauge	18
Finish	Zinc Galvanized, G90
Height	6.625"
Width	4"
Depth	0.81"
Member Size	Minimum 2x6 roof rafter and ceiling joist; minimum 2x4 knee wall stud
Packaging Quantity	1
Install With	Install with 0.148 in. x 1-1/2 in. nails
