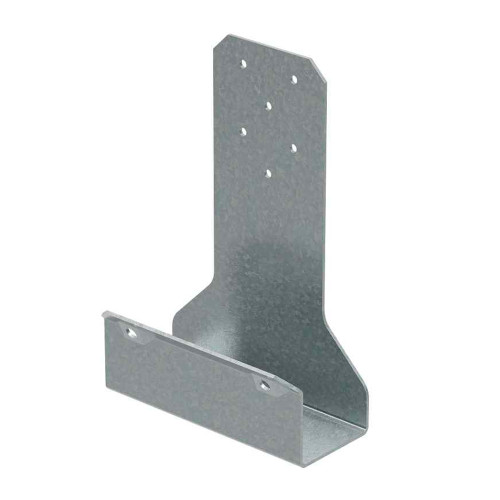

Simpson Strong-Tie SCLC1.75 - Stair Cassette Connector, 1-7/8" Opening

The SCLC is ideal for connecting preassembled stair cassettes to ledgers. The SCLC installs on the header in the factory with power-driven or hand-installed common nails. At the jobsite, the cassette is simply lowered onto the SCLC and fastened with Strong-Drive^® SDS Heavy-Duty Connector screws. It is an efficient process that helps reduce onsite labor costs and keeps projects on schedule. Also, because the assembly is secure once seated on the connector, field installation is safer than traditional methods. The SCLC offers ample fit-up tolerance, and custom fastener tabs provide greater strength and stiffness per screw. This code-listed connector is available galvanized for corrosion resistance, and is manufactured and stocked in the US for easy sourcing and delivery. Like all our solutions, the SCLC comes fully backed by our expert sales and technical support.

Key Features

• Factory installation of connector on ledger reduces onsite labor
• Stair cassette seats securely on connector for safer onsite installation
• Excellent onsite fit-up tolerance
• Uses power-driven or hand-installed common nails and SDS Heavy-Duty Connector screws
• Can be installed in conjunction with the LSCZ stair-stringer connector

Material

• 14 gauge

Finish

• G90 Galvanized

Installation

• In the factory, attach the SCLC to the header of the floor cassette. A minimum of (2) SCLC connectors shall be used to support a stair cassette. Use all specified fasteners.
• In the field, crane the stair cassette into place so that the stair cassette ledger engages all supporting SCLC connectors.
• Complete the installation with all specified field-installed SDS fasteners as shown in the installation images.
