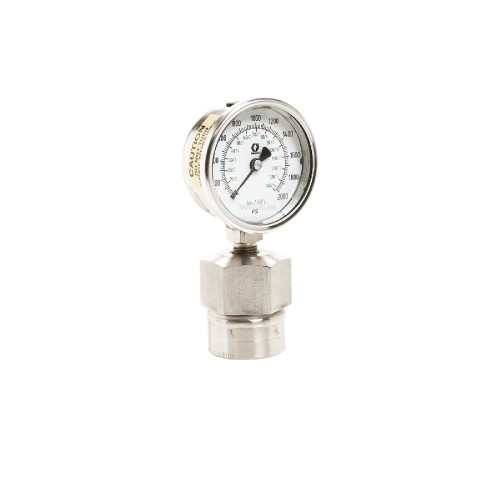

GRACO 110182 - Stainless Steel Fluid Gauges w/ Dampeners, 0-2000 PSI 1/4"NPT(F)
Stainless steel fluid gauge with dampener designed to protect gauge from severe pressure pulsation while providing accurate pressure monitoring. Features corrosion-resistant construction with large 63mm (2.5 inch) diameter dial for easy reading and 1/4 inch NPT connections for versatile installation.
Features:
- Dampener protects gauge from severe pressure pulsation
- Corrosion Resistant
- 2.5 in (63mm) diameter dial
- 1/4 in NPT connections
Additional Specifications
- Max Working Pressure: 0-2000 PSI
- Material: SS-with Dampener
- Gauge: 2-1/2"
- Mount Type: Bottom
- Case Material: SS-with Dampener
- Dial Diameter: 63 mm (2.5 in)
- Dampener: included
| Dial Diameter (in) | 2.5 |
| Inlet Size (in) | 1/4 |
| Inlet Thread Gender | Female |
| Inlet Thread Type | NPT |
| Material | Stainless Steel |
| Maximum Working Pressure (MPa) | 14 |
| Maximum Working Pressure (psi) | 2000 |
| Type | Pressure Gauge |
Features
- Stainless steel construction for durability
- Built-in dampener reduces needle flutter for stable readings
- 2-1/2 inch gauge face for easy reading
- Bottom mount configuration
- High pressure rating up to 2000 PSI
- Dampener protects gauge from severe pressure pulsation
Applications
- High pressure fluid monitoring
- Industrial spray applications
- Hydraulic systems
- Process monitoring where dampening is required
- High pressure fluid monitoring applications
- Systems with pressure pulsation that could damage standard gauges
Related Parts
- 187875 - Stainless Steel Low Pressure Fluid Gauge, 1/4 Nptm, 0-30 PSI
- 101176 - Fluid Pressure Gauge
- 176455 - Fluid Pressure Gauge, 1/4 Nptm, 0-100 PSI
- 187874 - Stainless Steel Low Pressure Fluid Gauge, 1/4 Nptm, 0-100 PSI
- 187873 - Stainless Precision Fluid Pressure Gauge, 1/4 Nptm, 0-200 PSI
- 187876 - Stainless Steel Low Pressure Fluid Gauge, 1/4 Nptm, 0-300 PSI
- 208855 - Stainless Fluid Pressure Gauge w/ Dampener, 0-300 PSI, 1/4 Nptm
- 118338 - Fluid Pressure Gauge, 0-300 PSI, 1/8" Bspp, 1/8 Bspp
- 101696 - Fluid Pressure Gauge, 0–1000 PSI, 1/4" NPT Male, Bottom Mount
Part of GRACO's comprehensive fluid gauge line with various pressure ranges and mounting options available Part of the Stainless Steel Fluid Gauges with Dampeners family, specifically designed for applications where pressure pulsation protection is critical Also order 166421 pipe nipple, 1/4–18 NPT; SST and 185281 tee, male; 1/4–18 NPT; SST for complete installation
Reference Manuals
- 336834 (Page 4) Fluid Regulators List
- 345020 (Page 78) Finishing Accessories
- 307886 (Page 11) Fluid Pressure Regulator
