WHEELER-REX 8202 Hot Tapping System for 3/4", 1", 1-1/2", 2" plastic pipe
The WHEELER-REX Hot Tapping System is hand operated and designed for drilling holes in active water lines up to 250 psi. It is lightweight and easy for one person to set up and use. Built-in bleed-off valve allows chips to be flushed away.

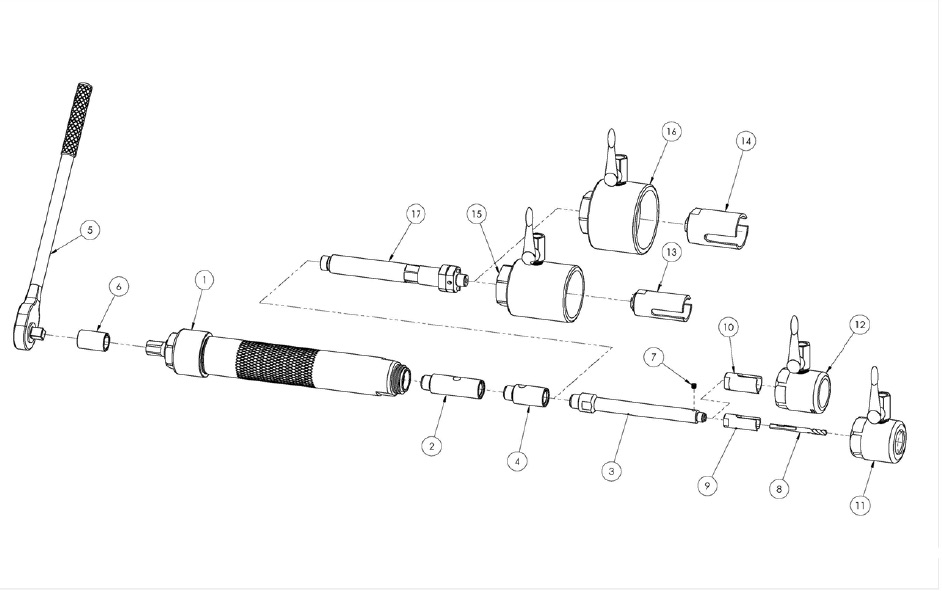

Includes:
- (1) 802050 3/4" CTS Flare Adapter
- (1) 802052 1" CTS Flare Adapter
- (1) 802056 1-1/2" CTS Flare Adapter
- (1) 802058 2" CTS Flare Adapter
- (1) 904065 3/4" Cutter Shell for Plastic C-900
- (1) 904066 1" Cutter Shell for Plastic C-900
- (1) 904068 1-1/2" Cutter Shell for Plastic C-900
- (1) 904069 2" Cutter Shell for Plastic C-900
- (1) 6515 Ratchet
- (1) 701440 1-1/2" & 2" Large Arbor Assembly
- (1) Tool box
Note: The 701440 arbor is for cutting larger holes in difficult materials. This arbor is to be used with 1-1/2" and 2" cutter shells for all three WHEELER-REX hot tap systems. The new arbor design has drive pins that align with holes in the large cutter shells for a stronger assembly.
All Hot Tapping System Kits:
| MODEL# |
8100 |
8102 |
8200 |
8201 |
8202 |
8203 |
8204 |
8205 |
8206 |
8209 |
8300 |
| Pipe Sizes |
3/4" |
3/4" |
3/4" |
3/4" |
3/4" |
3/4" |
3/4" |
3/4" |
3/4" |
3/4" |
3/4" |
| 1" |
1" |
1" |
1" |
1" |
1" |
1" |
1" |
1" |
1" |
1" |
| |
1-1/4" |
|
|
|
|
|
|
|
|
|
| |
1-1/2" |
|
|
1-1/2" |
|
1-1/2" |
|
1-1/2" |
1-1/2" |
|
| |
2" |
|
|
2" |
|
2" |
|
2" |
2" |
|
| Adapter Threads |
|
|
|
|
|
|
|
|
|
|
BSPT |
| NPT |
NPT |
|
|
|
|
|
|
|
|
|
| |
|
CTS Flare |
CTS Flare |
CTS Flare |
CTS Flare |
CTS Flare |
CTS Flare |
CTS Flare |
CTS Flare |
|
| |
|
|
|
|
|
|
|
|
Compression |
|
| Pipe Materials |
Steel |
Steel |
Steel |
|
|
|
|
|
|
|
Steel |
| Copper |
Copper |
Copper |
|
|
|
|
|
|
|
Copper |
| |
|
|
Plastic |
Plastic |
|
|
Plastic |
Plastic |
Plastic |
|
| |
|
|
|
|
Cast Iron |
Cast Iron |
Cast Iron |
Cast Iron |
Cast Iron |
|
| |
|
|
|
|
Ductile Iron |
Ductile Iron |
Ductile Iron |
Ductile Iron |
Ductile Iron |
|
